Engineering ROI: Why JST’s 2026 Mold Layout Prevents High Maintenance Costs
Case Study: How JST’s 2026 design logic saved a client from high maintenance costs and production losses caused by poor layout and cold runners.
How important is mold design and cavity layout in injection molding? What role does it really play in the success of a mold project?
Risk Mitigation: Why JST’s 2026 Tooling Logic ensures 1,000,000+ shot success and lower Total Cost of Ownership (TCO).
[Case Study]
We’d like to share a real customer case to illustrate this point.

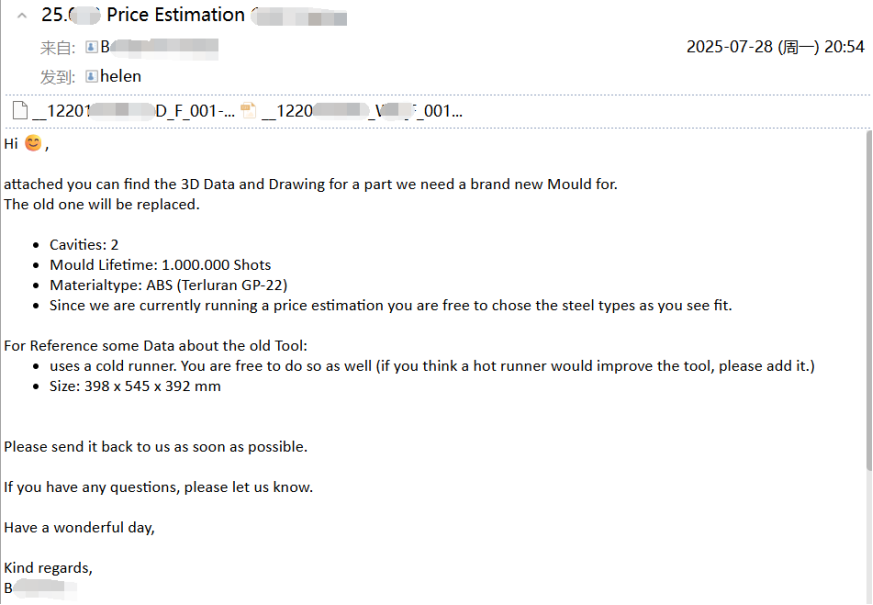

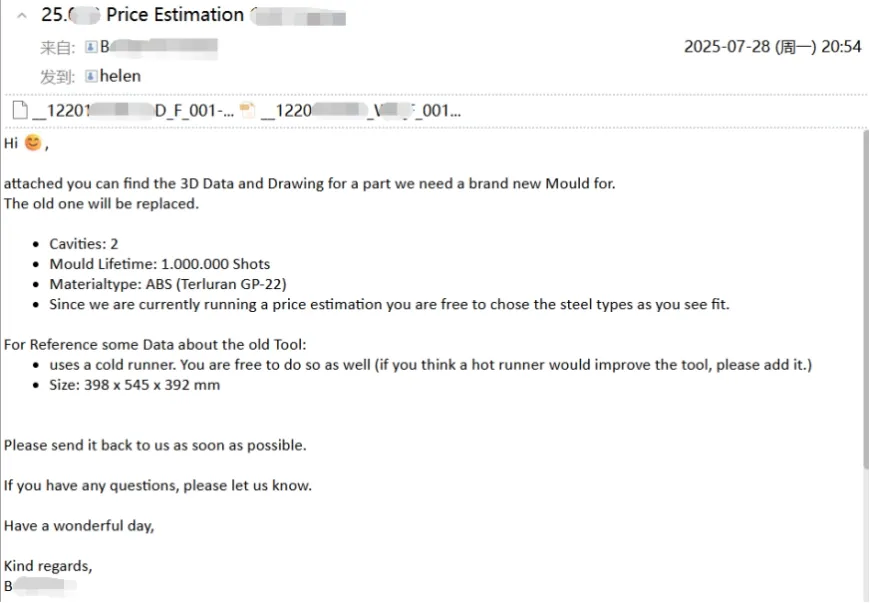

A client sent us an inquiry for a 2-cavity mold quotation and provided the reference dimensions of their old mold along with the cold runner system they were using.

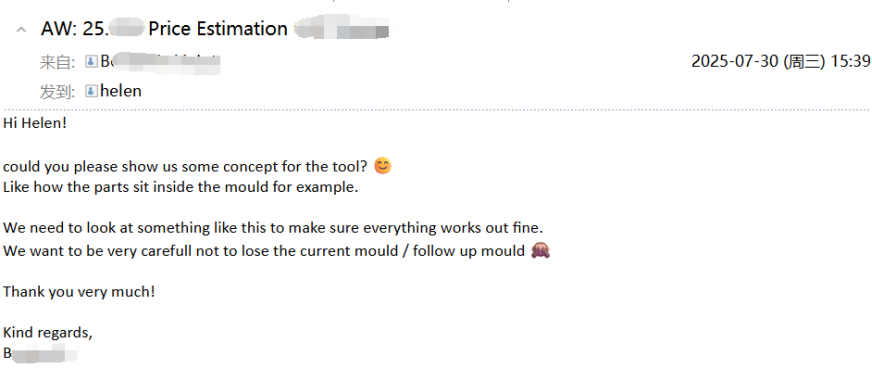

After we submitted the quotation, the client asked us to share our mold design concept and cavity layout drawing. They wanted to evaluate our design philosophy and layout in advance, because in many cases, the reasonableness of a design cannot be judged from the price alone. Issues often only surface during the DFM stage after the order is confirmed. The client emphasized that they wanted to be cautious and avoid any current or future mold problems. From their tone, it seemed they had already encountered troubles with previous suppliers.

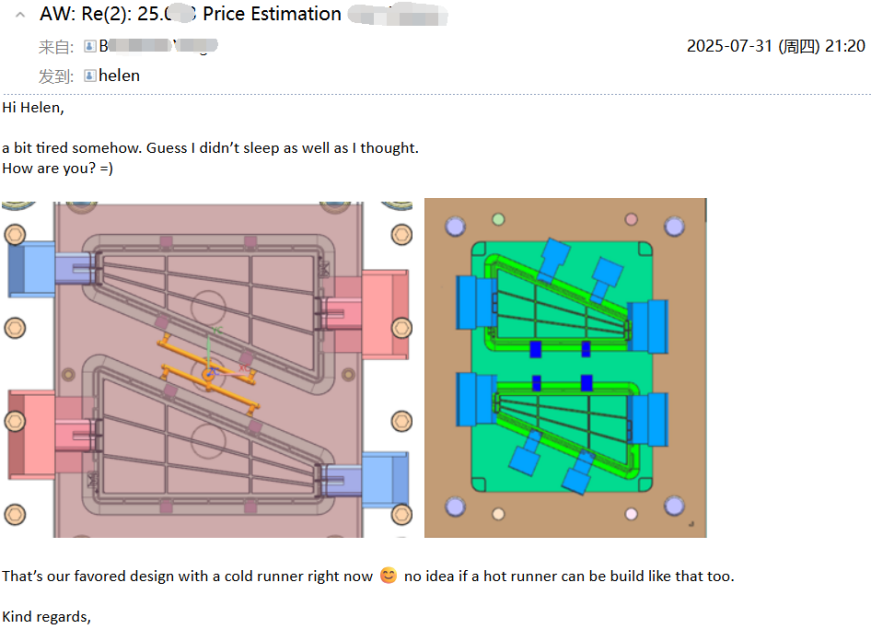

The client then informed us that they had previously produced this project with another mold maker. They shared the following comparison: the left image shows the cavity layout of their old mold, and the right image shows our proposed design.
Project Kick-off: Defining technical baselines for a high-volume international program.
Technical Transparency: Evaluating design philosophy to prevent future production bottlenecks.
The client questioned why our layout would result in a larger mold base and why we recommended using a hot runner system (as shown in the right image). In contrast, their old mold layout looked more compact, which could reduce material usage and make the mold base smaller. It also used a cold runner system, saving both steel costs and the expense of a hot runner. On the surface, it appeared more cost-effective.
But was it really?
Design Evolution: Replacing a high-maintenance "compact" design with an engineered hot runner solution.

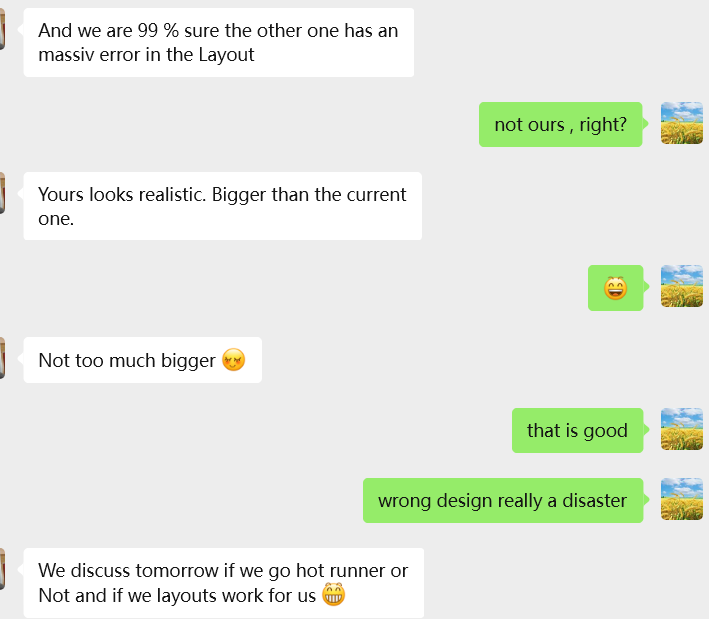

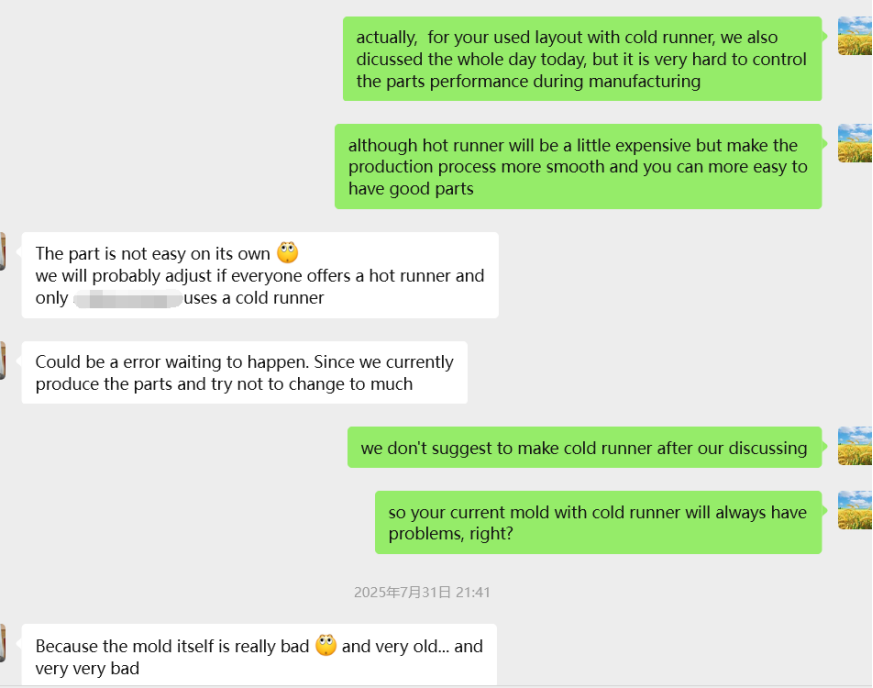

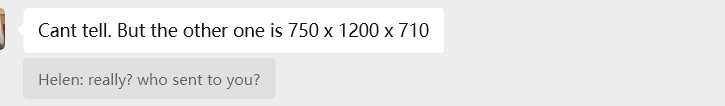

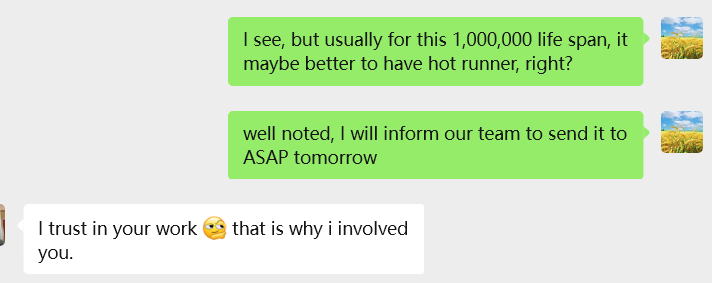

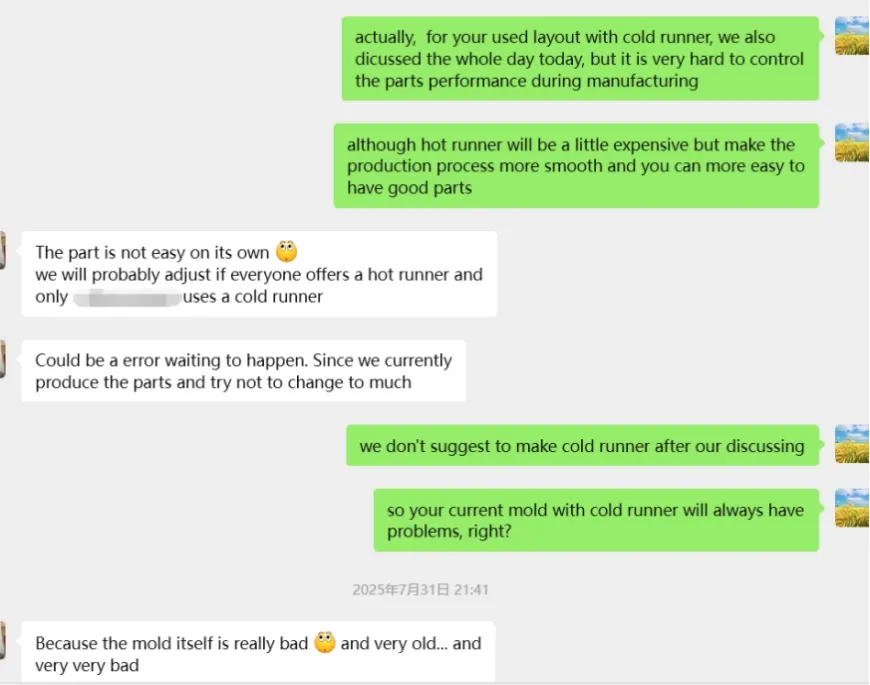

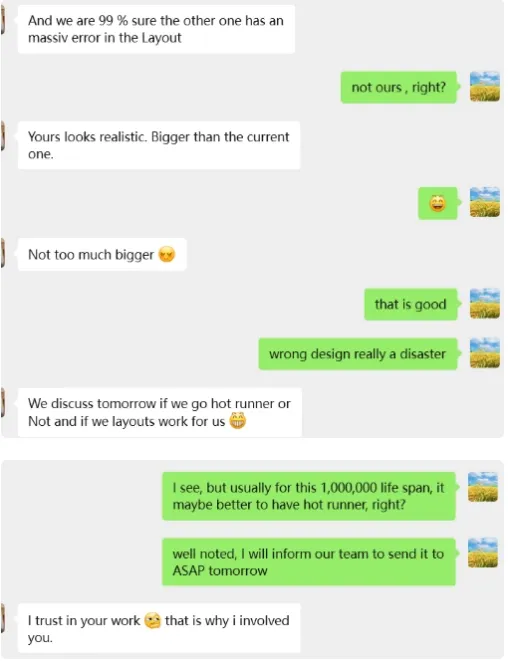

Here is part of our communication with the client:
Expert Consultation: Identifying massive errors in previous supplier layouts.
Value Engineering: Discussing the ROI of hot runner systems for high-cycle tools.
Before submitting any quotation or proposal, our team always discusses the project thoroughly and selects the most suitable solution for the customer. Regarding the layout shown on the left, we had already analyzed it in detail. Although it appears to make the mold smaller, it is actually a flawed design and layout. For a 2-cavity mold that requires a lifetime of 1,000,000 shots, it is very difficult to meet the customer’s requirements without using a hot runner system.
After verification, the client confirmed that our mold base dimensions were more realistic and practical.
A reliable and responsible mold manufacturer will identify and control risks in advance. Through team discussion and professional analysis, we design the most appropriate cavity layout based on the customer’s requirements and product characteristics. This approach helps avoid major issues and potential disasters during later mold manufacturing and production.

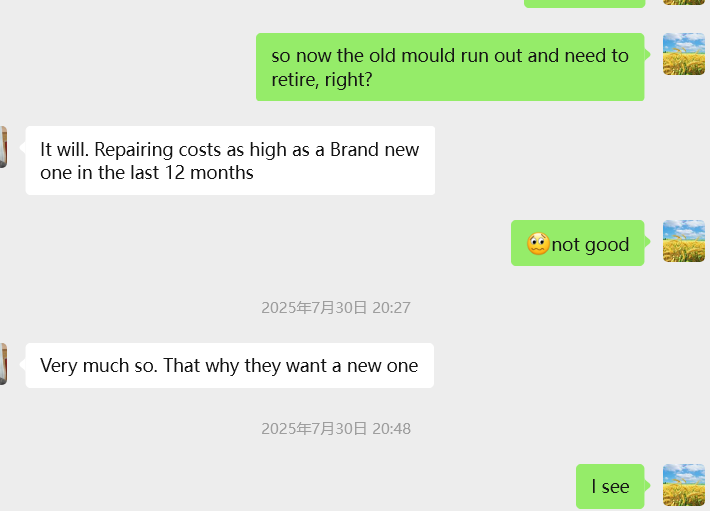

Looking back at the client’s feedback: the old mold with the problematic layout and cold runner system incurred maintenance costs over the past 12 months that were higher than the cost of building an entirely new mold. The actual losses went far beyond the high repair expenses — they also included significant downtime, lost production time, and opportunity costs. For high-volume or critical projects, the consequences would have been even more severe. The client emphasized: “The mold itself is really bad, and very very bad.” Their experience was extremely disappointing.
The Cost of Compromise: When 12 months of repairs equal the price of a brand-new engineered mold.
As illustrated in the comparison infographic above, the failure of a compact layout leads to massive production losses.
Even though building a new mold requires time, effort, and investment, the client ultimately decided to remake the mold.
At the end of the day, the customer is the final judge of whether a mold is good or not. Based on their feedback, our design was well received.
So, how important is mold design and cavity layout? Now it’s your turn to decide. We strongly recommend that you communicate thoroughly with a reliable and responsible mold manufacturer at the early stage. Discuss potential problems and risks openly, explore different options together, and choose the mold solution that best meets your product’s production and manufacturing requirements.
We understand that the current European economy is not as active as before — a point also mentioned by several of our long-term German clients. At JST, we help customers develop multiple solutions during the DFM stage to ensure the correct mold layout. We assist them in reducing costs, speeding up first article delivery (FOT), achieving on-time delivery, and maintaining excellent product quality.
Trust Earned: Long-term partnership built on uncompromising engineering rigor.

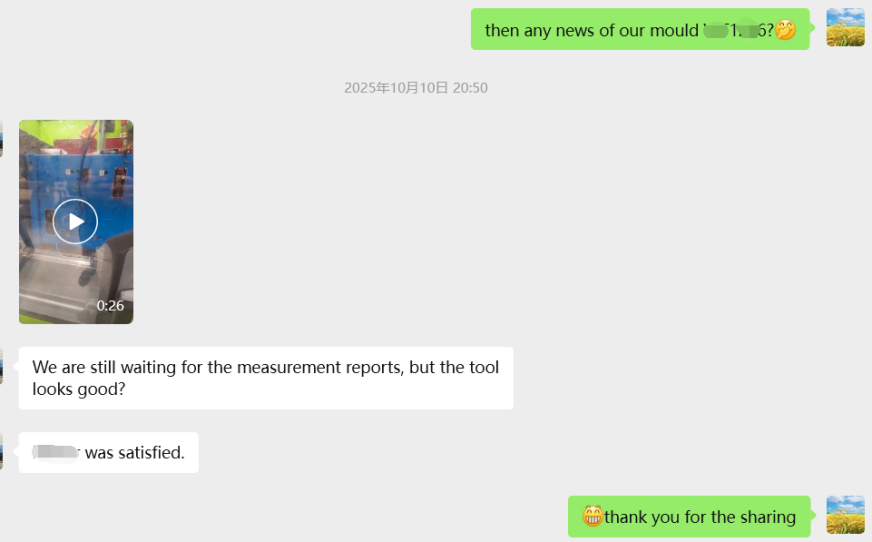

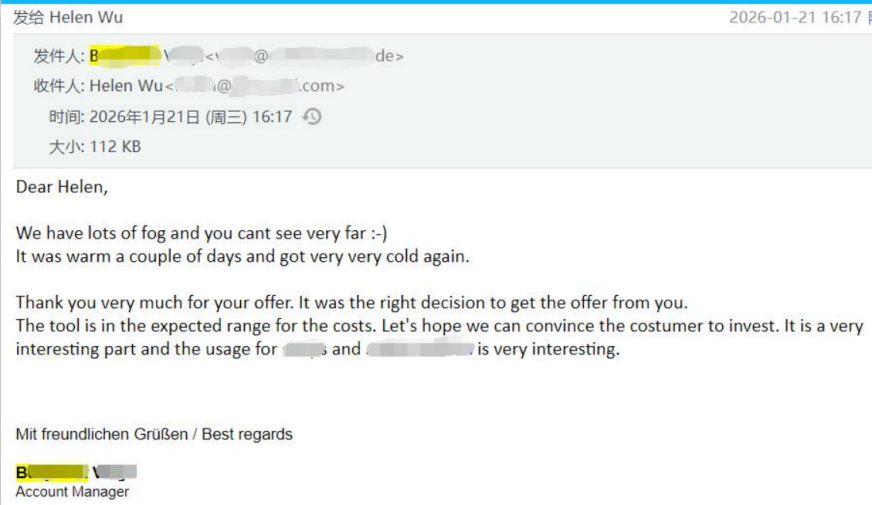

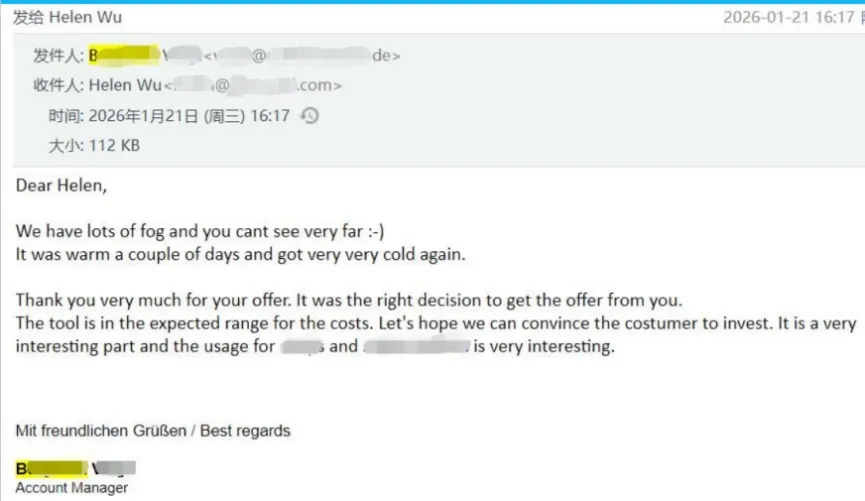

The above is a reply from one of our long-term clients who has been placing repeat orders for many years. While one positive feedback may not mean everything, we frequently receive such positive responses from our customers. This proves that JST is a responsible and trustworthy high-quality mold supplier.
Conclusion: Stop Fighting the Physics of "Cheap"
A reliable mold manufacturer identifies risks in the DFM phase, not after the tool is shipped. If your current supplier is focused on saving pennies on steel while ignoring your downtime costs, you need a new partner. At JST, we provide engineered solutions tailored to your long-term ROI.
