01 / INTERIOR1
Automotive Interior Tooling
Injection molds for armrests, interior trim and structural plastic components, including complex undercuts, visible surfaces and assembly features.
INTERIOR TRIM / ARMRESTS
AUTOMOTIVE INJECTION MOLD TOOLING
Custom Automotive Injection Mold Manufacturer
Custom automotive injection molds for interior, exterior and functional plastic components. JST Mould supports DFM review, precision tooling, mold trials and export mold delivery.
AUTOMOTIVE TOOLING APPLICATIONS
Automotive Injection Mold Applications
Custom tooling for automotive interior, exterior, functional and multi-material plastic components, with attention to part geometry, assembly requirements and molding stability.
View Automotive Projects
02 / EXTERIOR2
Automotive Exterior Tooling
Tooling for fog lamp bezels and exterior trim, with engineering attention to surface appearance, parting lines, dimensional control and assembly fit.
BEZELS / EXTERIOR TRIM
03 /FUNCTIONAL3
Functional Plastic Housings
Custom molds for automotive functional housings, considering ribs, wall thickness, material behavior, filling balance and dimensional requirements.
FUNCTIONAL HOUSINGS
04 / MULTI-MATERIAL4
2K & Multi-Material Tooling
Tooling solutions for two-shot and overmolded components, with attention to material compatibility, bonding interfaces and manufacturability.
2K / OVERMOLDING
Selected Automotive Tooling Projects
Explore selected automotive tooling applications involving interior components, exterior trim and functional plastic housings.

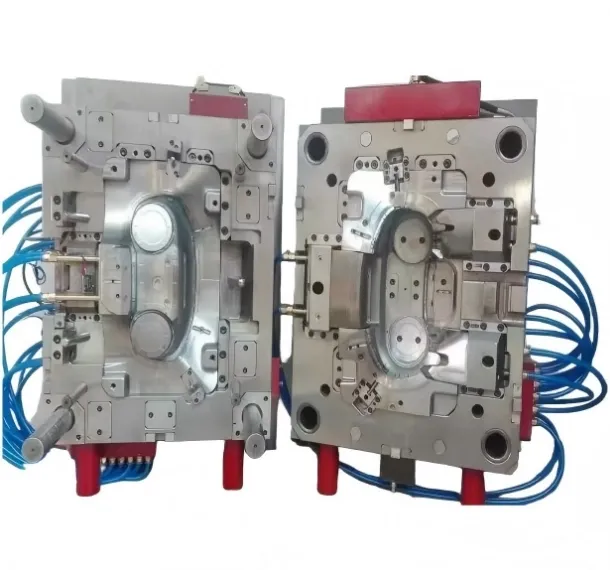

Automotive Center Console Armrest
Automotive center console armrest tooling example, illustrating the mold structure used for an interior component.

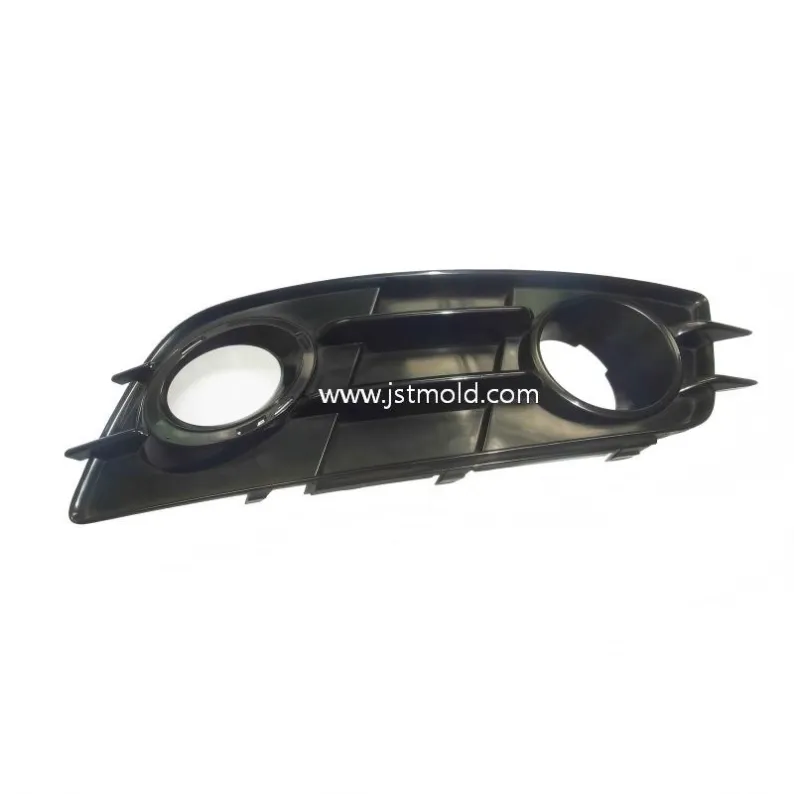

Automotive Fog Lamp Bezel
Automotive fog lamp bezel component used to illustrate tooling considerations for exterior trim.

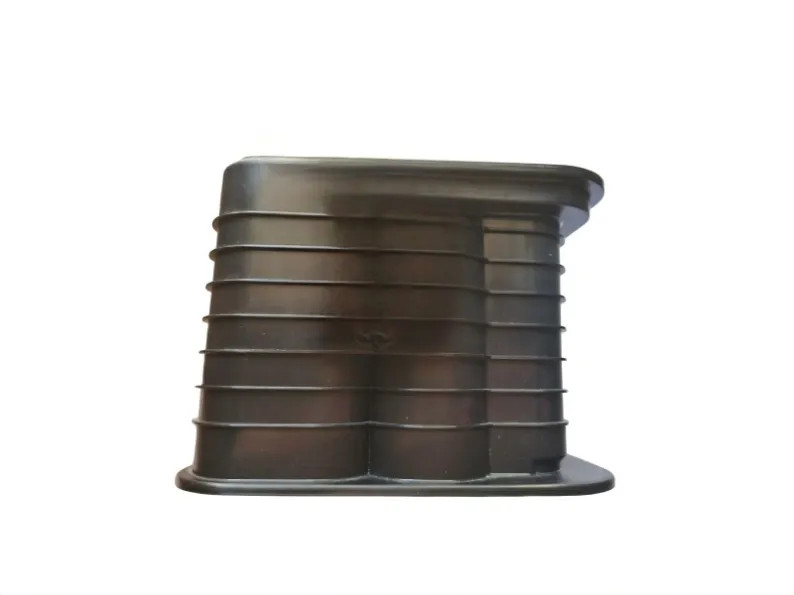

Automotive Fuel Vapor Canister Housing
Functional canister-housing geometry illustrates ribs, mounting features and molding considerations.

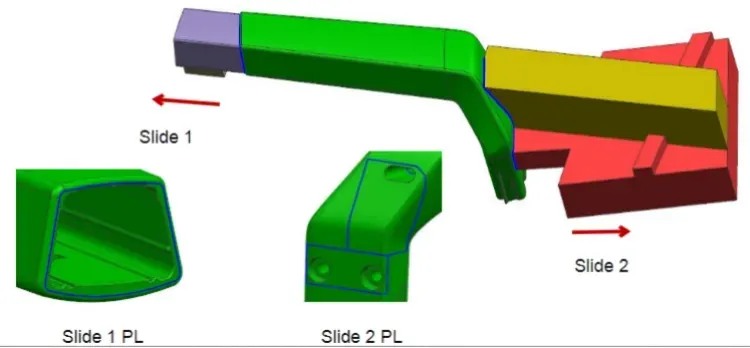

DFM and Automotive Mold Engineering
Geometry and Release
DFM considers opening direction, draft, undercuts, sliders, shut-offs and parting lines before detailed tooling decisions.
Material and Processing
Resin selection, reinforcement, gating, cooling and intended volume influence mold layout and engineering risks.
Quotation Readiness
Early DFM review can identify critical tooling assumptions before quotation. Full product development or mold design requires an agreed scope.
Precision Tooling Manufacturing
01
Tool Construction
Depending on the part, tooling may use precision cores, cavities, inserts, sliders, lifters, cooling, ejection and appropriate runner systems.
02
Project-Specific Standards
Steel grade, mold base, runner supplier, cavity configuration and inspection requirements are agreed for each project.
03
Engineering Continuity
Reviewed design assumptions guide machining and assembly. Trial feedback helps determine further engineering actions where needed.
T1 Mold Trials, Dimensional Inspection and Engineering Feedback
T1 Is Not Final Approval T1 documents molding conditions and sample results for engineering review. It is not final mold acceptance. Real T1 Trial Records The parameter sheet, injection machine screen and CMM report supplied for this page relate to one product and the same T1 trial.
Dimensional Findings The inspection report contains out-of-tolerance findings. These are shown as engineering observations, not proof that corrections or customer approval were completed.
Export Tooling Project Workflow
1. RFQ Review
Share CAD, resin, critical dimensions, finish, intended annual volume and molding location. Identify provisional requirements.
2. Tooling Concept
Clarify manufacturability risks, mold configuration, applicable standards and engineering support before commercial confirmation.
3. Manufacturing
Coordinate manufacturing, assembly and trial preparation according to the approved tooling plan and project requirements.
4. Trial and Inspection
Record observations, samples and inspection results; communicate findings and required follow-up actions.
5. Acceptance and Shipment
Follow agreed sample approval, mold acceptance, handover documentation, export packing and shipping requirements.
Why Automotive Tooling Buyers Work With JST Mould
01
Manufacturing-Led Engineering
JST combines tooling engineering discussions with mold manufacturing, precision machining and coordinated trial resources.
02
International Project Support
Export tooling work benefits from clear communication on mold standards, trial evidence, approvals and shipment deliverables.
03
Transparent Capacity
Specialist external trial facilities may be arranged for large molds. External trial capacity must not be represented as JST-owned molding equipment.
Request an Automotive Injection Mold Quotation
RFQ Requirements Send available STEP/IGES CAD, material grade, critical dimensions, surface requirements, expected annual volume and mold destination.
Scope of Review An initial tooling discussion can clarify feasibility and quotation assumptions. Detailed DFM or development work is subject to an agreed project scope.
AUTOMOTIVE MOLD RFQ
Ready to Discuss Your Automotive Mold Project?
Share your 3D CAD files, material requirements, annual production volume and tooling specifications. JST Mould can review manufacturing feasibility and discuss the next steps toward a mold quotation.
01 / TOOLING REVIEW1
Submit Your Automotive Mold RFQ
Send your CAD files and project requirements to start an initial tooling discussion with JST Mould.
CAD / MATERIAL / ANNUAL VOLUME
