Heavy-Duty Large-Scale Precision Injection Mold for Automotive & Industrial Components | Custom Turnkey Tooling Solutions


Product Overview

This is a high-performance, large-scale plastic injection mold engineered for the most demanding industrial applications. This robust tooling is designed to produce large, complex plastic components that require high structural integrity and dimensional stability, typically seen in the automotive, HVAC, or large appliance industries.
At JST Mold, we pride ourselves on our "Big Mold" engineering capabilities. This fully assembled mold features a sophisticated management system for temperature and mechanical movements, ensuring a stable, high-speed production environment for high-volume manufacturing orders.


Key Features

  • Robust Heavy-Duty Construction:Built on a reinforced precision-ground mold base, designed to maintain perfect alignment even under the extreme clamping forces of large-tonnage injection machines.

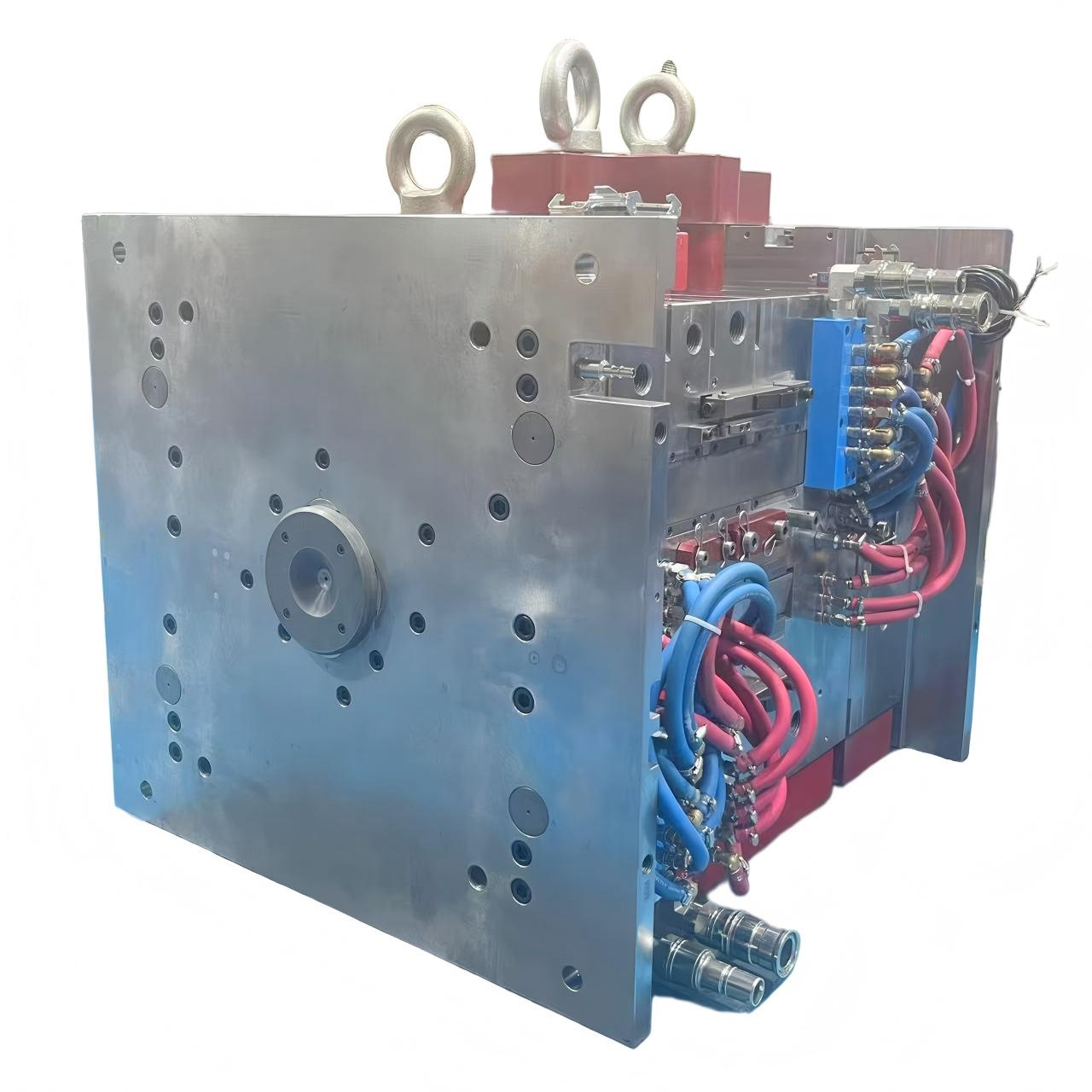

  • Advanced Multi-Circuit Cooling System:Features an extensive network of cooling lines (visible via the red and blue hoses) strategically positioned to ensure rapid heat dissipation and uniform cooling for large part surfaces.
  • Integrated Hot Runner & Hydraulic Systems:Equipped with high-end hot runner manifolds and hydraulic core-pulling cylinders to handle complex geometries and ensure optimal material flow during the injection process.
  • Safety & Maintenance-Friendly Design:Includes heavy-duty lifting eyes and standard-compliant electrical/hydraulic connections for safe handling and simplified on-site maintenance.
  • Long-Term Durability:Constructed with premium hardened steels (e.g., 1.2738H, 718H, or P20) to guarantee a mold life of 500,000 to 1,000,000+ shots without compromising precision.


Technical Specifications

Item
Details
Mold Type
Large-Scale Industrial Injection Mold
Application
Automotive Body Parts, Large Appliance Housings, Industrial Tubs
Runner System
High-Performance Hot Runner (Sequential Gating available)
Tooling Steel
Premium Hardened Tool Steel (S136, 1.2344, 718H)
Mechanism
Hydraulic Core-Pulling & Precision Ejection
Cooling
Multi-Zone Optimized Water Cooling System
Mold Life
High-Volume (Up to 1,000,000 shots)
Quality Standard
Fully Compliant with IATF 16949 / ISO 9001


Why Choose JST Mold for Large-Scale Projects?

  1. Massive Machining Capability:Our facility is equipped with large-bed CNC and EDM machines that can process mold bases weighing up to several tons.
  1. Turnkey Engineering:From initial Mold Flow analysis to final T1 trial on large-tonnage machines, we manage every step of your big-part project.
  1. Proven Reliability:We serve global Tier-1 automotive and industrial clients, delivering molds that run 24/7 in high-production environments with minimal downtime.
