High-Precision Rear Housings for Automotive Headlight & Fog Lamp Modules | Integrated Structural Solutions by JST Mould
The Strategic Role of Lighting Housings in Modern Vehicle Design
In the Tier-1 automotive lighting sector, the rear housing is the critical engine room of the lamp module. This complex structural component from JST Mould is engineered to provide a stable, hermetically sealed platform for advanced LED and HID optical systems. Beyond mere protection, these housings must manage precise photometric alignment and withstand the extreme thermal loads generated by high-intensity light sources. We specialize in producing technical lighting enclosures that combine lightweight structural integrity with the absolute dimensional stability required for zero-defect vehicle assembly.
Technical Manufacturing Insight: Managing Complexity in Deep-Draw Tooling
-

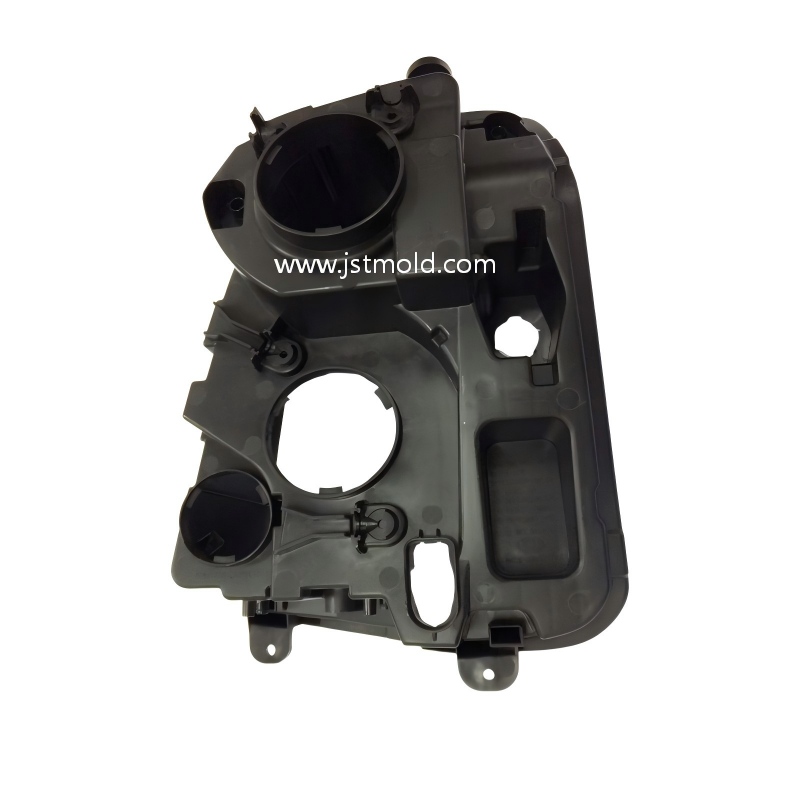

Precision-Molded Multi-Functional Apertures: This component features a sophisticated array of circular bulb-socket seats and electrical connector ports. JST Mould utilizes advanced 5-axis CNC and mirror EDM to ensure every mechanical interface is accurate to within +/- 0.01mm, guaranteeing an IP67-rated waterproof seal against internal lamp electronics.
-
Structural Reinforcement & Mechanical Rigidity: Engineered with a high-density radiating rib architecture. This design is strategically optimized to prevent vibrational fatigue and maintain optical focal points even under harsh road conditions. Our technical tooling ensures uniform wall thickness across these complex ribs to prevent thermal warping.
-
High-Performance Material Science for Lighting: We provide personalized customization for automotive-grade resins, including heat-stabilized PC/ABS blends, mineral-filled Polyamides (PA66), and low-outgassing polymers. These materials ensure that the housing maintains its structural integrity and color consistency throughout the vehicle’s 15-year lifecycle.
-
Integrated Fastening & Snap-Fit Engineering: Featuring complex internal mounting bosses and external snap-fit clips molded in a single shot. This technical integration facilitates rapid, error-free assembly on the vehicle production line, significantly reducing total manufacturing costs for our global partners.
The JST Mould Competitive Edge: Agility and Global Compliance
-
Engineering Solutions for Rapid Development: JST Mould acts as your technical consultant from the initial concept. We provide detailed Mold Flow and DFM (Design for Manufacturing) analysis to optimize gating locations and eliminate air traps before the tool is built.
-
Fast-Track Tooling & Lead Time Guarantee: We understand that vehicle launch windows are aggressive. JST Mould is optimized for speed; we offer rapid prototyping and guaranteed fast-track T1 sample delivery to ensure your validation testing stays ahead of schedule.
-
Proven Mass Production Excellence: Operating under strict IATF 16949 quality protocols, our facility is designed for 24/7 high-volume manufacturing. We deliver consistent, zero-defect modules that empower our global partners to scale their vehicle programs with absolute confidence in their high-tech supply chain.
Technical Specification Breakdown
-
Component Category: Precision Automotive Lighting Rear Housing / Lamp Frame
-
Primary Application: LED Headlights, Fog Lamps, Rear Combination Lamps (RCL)
-
Manufacturing Process: High-Precision Deep-Draw Technical Injection Molding
-
Material Compatibility: High-Heat PC/ABS, Reinforced PA66, or ASA (Customizable)
-
Precision Tolerance: Micron-level dimensional registration within +/- 0.01mm
-
Surface Finish: Professional Technical Matte / Graining Compatible / Class-A Ready
-
Lead Time Commitment: Rapid T1 Prototyping and Fast-Track Global Delivery
-
Service Model: Full Turnkey OEM/ODM Design, Technical Tooling, and Mass Production
