The Engineering of Alignment: Mastering Micron-Level Centering Sliders

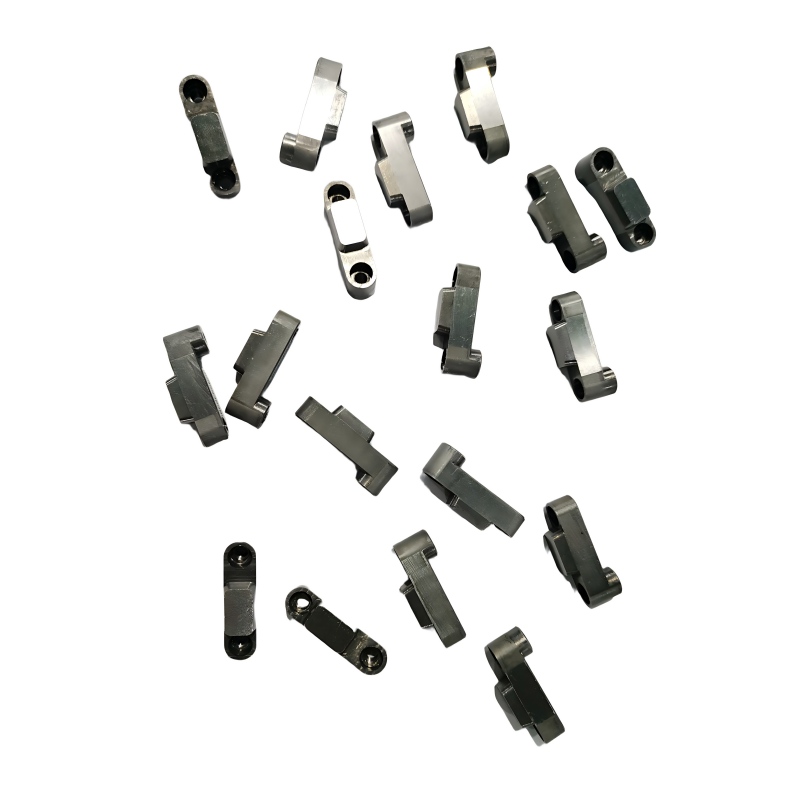

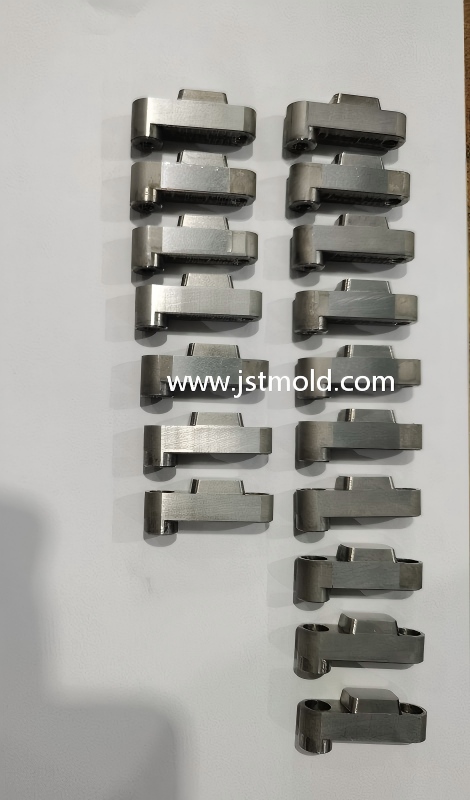

In the world of high-performance technical tooling, the life of a mold depends on its alignment system. These centering sliders (Zentrierung Schieber) from JST Mould are a definitive showcase of our mastery in Slow-feed Wire EDM (WEDM) technology. Custom-manufactured for a demanding German project, these components serve as critical registration elements that ensure zero-tolerance mold closing. We specialize in producing technical components that meet the rigorous "Precision-First" culture of the European tooling industry, ensuring your high-volume production remains flash-free and dimensionally stable.
Technical Mastery & Material Innovation Highlights
Slow-feed Wire EDM Excellence:
- JST Mould utilizes advanced slow-feed WEDM processing to achieve surface finishes of Ra < 0.4μm and vertical tolerances within +/- 0.003mm. This extreme precision is vital for centering sliders, as even the slightest misalignment can lead to core-shift or premature tool wear in multi-cavity automotive molds.
Strategic Use of Premium Groditz Steel:
- To ensure the highest level of dimensional stability and wear resistance, these parts are machined from certified German Groditz steel. This material selection guarantees that the components maintain their mechanical properties under intense thermal cycles and repetitive sliding friction, maximizing the tool’s operational lifespan.
Integrated Quality Assurance & Metrology:
- We don't just ship steel; we ship verified data. Every batch of centering sliders is accompanied by a comprehensive Inspection Report, including 3D CMM data and material certifications. Our technical process adheres strictly to IATF 16949 quality protocols, providing the transparency and accountability required by global Tier-1 OEMs.
Export-Grade Technical Packaging & Logistics:

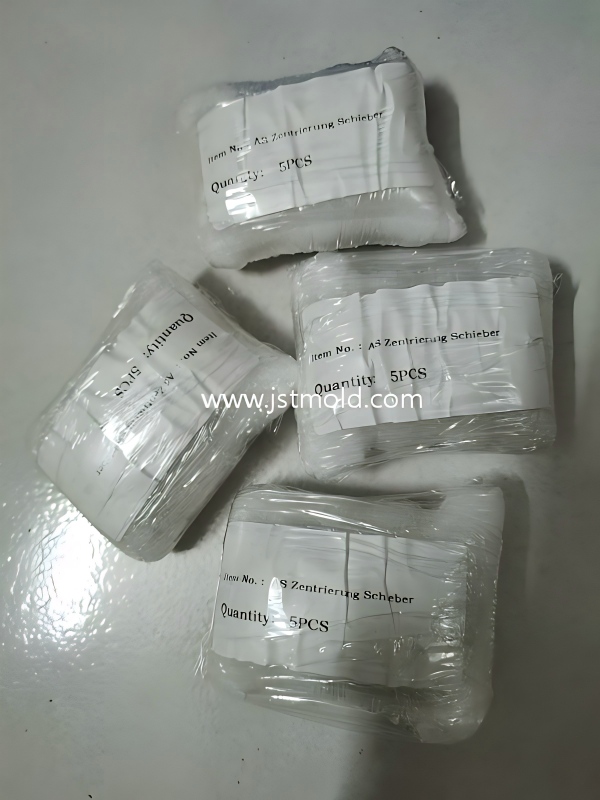

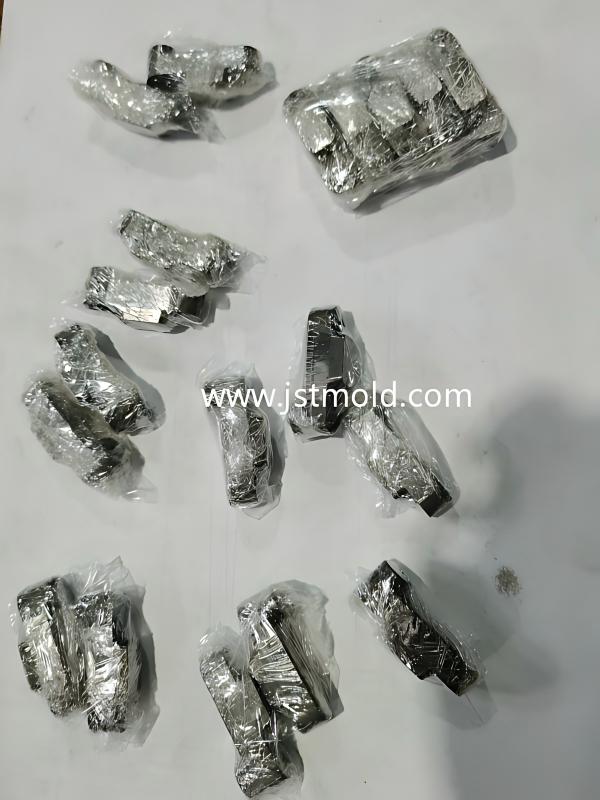

- As shown in our multi-stage packaging process, every component is individually cleaned, vacuum-sealed, and labeled according to German industrial standards (Zentrierung Schieber). This "safe-arrival" protocol ensures that every technical edge remains protected during international transit, arriving ready for immediate "plug-and-play" assembly.
The JST Mould Competitive Edge: German Quality, China Agility
Personalized Technical Customization:
- At JST Mould, we act as an extension of your engineering team. We offer tailored material hardening and technical coating solutions (like DLC or CrN) based on your specific mold performance requirements.
Guaranteed Fast Lead Times for Export:
- We understand the critical path of tool assembly. Leveraging our specialized Wire EDM department, we offer industry-leading lead times for both standard and bespoke centering components, keeping your global project on schedule.
Reliable Turnkey Supply Chain:
- From the selection of premium German steel to final CMM verification and technical export packaging, JST Mould provides a reliable, high-tech manufacturing foundation that global partners trust for their most complex programs.
Quick Technical Performance Specs
Component Category: Precision Centering Slider / Zentrierung Schieber / Guide Block
Primary Application: High-Precision Automotive Molds, Industrial Tooling Alignment
Manufacturing Process: Slow-feed Wire EDM, Precision Grinding, Technical Hardening
Material Compatibility: Certified Groditz Tool Steel, H13 (Hardened), or S136
Precision Tolerance: Micron-level dimensional registration within +/- 0.003mm
Surface Finish: Ra < 0.4μm Fine technical finish
Service Model: Full Turnkey OEM/ODM Technical Component Fabrication
Delivery Performance: Rapid T1 Prototyping and Fast-Track Global Shipping
SEO Search Tags (Long-Tail Focus)
Wire EDM centering slider manufacturer, Zentrierung Schieber mold parts, JST Mould technical engineering, Groditz steel machining China, precision slow-feed WEDM parts, Tier-1 automotive tooling components, high-volume injection mold guide, custom mold inserts Germany, fast lead time machined parts, IATF 16949 technical parts, precision alignment block mold.
We only use slow-feed wire EDM for critical centering components to eliminate surface recast layers and internal stress.
We are familiar with German tooling standards (DIN/ISO). Even our internal labeling and packaging follow European technical norms for seamless warehouse integration.
