The Engineering Logic of Symmetrical Precision: Mastering High-Volume Technical Tooling

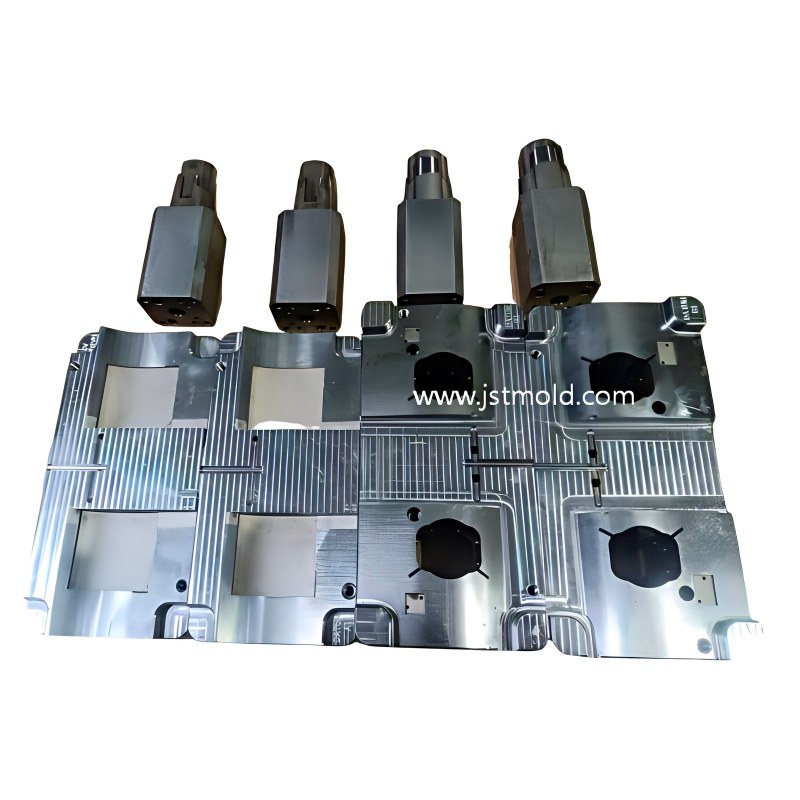

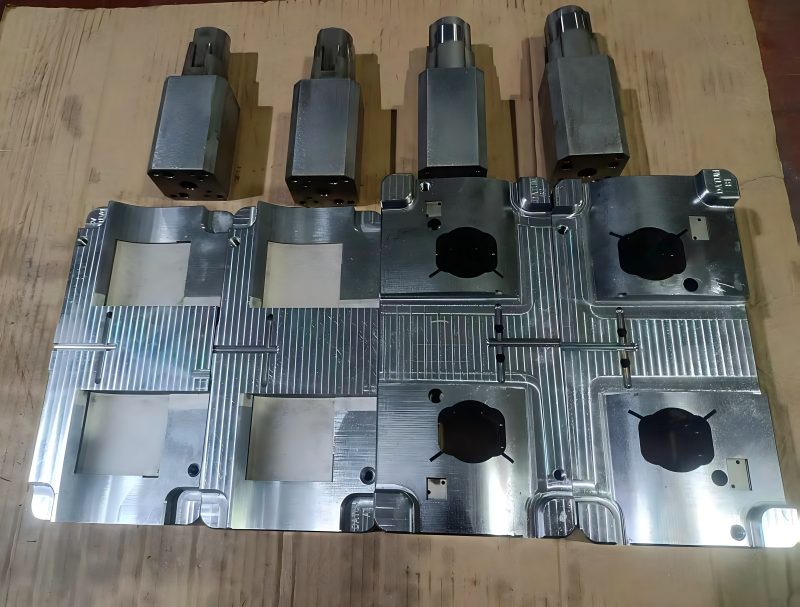

In the world of high-precision injection molding, the consistency between cavities determines the success of mass production. This collection of technical mold inserts and core blocks from JST Mould represents our mastery in producing complex, multi-cavity modular systems. Designed for Tier-1 automotive and electronic sectors, these components handle the dual challenges of intricate 3D geometry and micron-level interchangeability. By utilizing advanced monolithic machining techniques, we ensure that every cavity delivers identical dimensional stability, providing a reliable foundation for zero-defect manufacturing.
Technical Mastery & Component Innovation Highlights
Complex Multi-Level Ribbing & Geometry:
- The inserts feature a sophisticated array of deep-draw reinforcement ribs and multi-tier mounting seats. JST Mould utilizes high-speed 5-axis CNC pathing to achieve these features with absolute precision, ensuring the mechanical integrity and aesthetic consistency of the final plastic parts.
Precision Engineered De-molding Elements:
- The accompanying core blocks and sliding units are meticulously ground and fitted to manage complex undercuts. Our technical tooling ensures a smooth, non-destructive ejection process, which is critical for maintaining high-gloss surfaces and prevent stress whitening in thin-walled components.
Micron-Level Verification with CMM:
- Every component shown has undergone rigorous 3D Coordinate Measuring Machine (CMM) inspection. This data-driven quality control ensures that the physical steel matches your digital CAD data to within +/- 0.005mm, facilitating a "perfect fit" during global assembly.

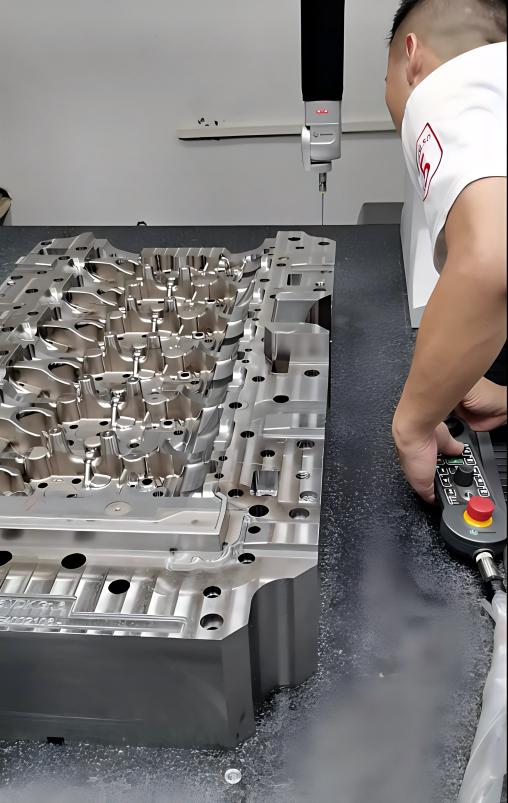

Our engineers performing final 3D CMM inspection on technical inserts to guarantee +/- 0.005mm tolerance before global shipping.
High-Grade Hardened Steel Resilience:
- Manufactured from premium tool steels (such as S136, 1.2344, or NAK80) hardened to HRC 48-52. This material choice guarantees a production life exceeding 1,000,000 shots while maintaining sharp parting lines and flawless surface finishes against abrasive engineering resins.
The JST Mould Strategic Advantage: Bespoke, Reliable, and Fast
Proven Technical Track Record:
- We have extensive experience delivering precision components to European and North American toolmakers. Our components are global-ready for immediate integration into your high-tech molds.
Guaranteed Global Logistics:
- From vacuum technical packaging to secure international crating, JST Mould ensures your precision components arrive in perfect condition. We provide full material and dimensional reports with every shipment to ensure a transparent and reliable supply chain.
Fast-Track Lead Times:
- Leveraging our integrated in-house machining facility, we offer industry-leading turnaround times for high-precision inserts and replacement parts, keeping your project’s mass production schedule on track.
Technical Specifications At-a-Glance
-
Component Category: High-Precision Multi-Cavity Mold Cores / Sliding Core Units
-
Application: Automotive Interiors, Technical Electronics, Medical Modules
-
Manufacturing Process: High-Speed 5-Axis CNC, Precision Mirror EDM, CMM Verification
-
Material Compatibility: Hardened S136, 1.2344 (H13), NAK80, 718H
-
Machining Tolerance: Micron-level registration within +/- 0.005mm
-
Surface Quality: Fine Machined Technical Finish / Texture Ready / SPI Standards
-
Service Model: Custom Technical Component Fabrication and Global Export
SEO Search Tags
Precision mold inserts, multi-cavity core pins, JST Mould technical engineering, custom CNC machined mold parts, Tier-1 automotive plastic tooling, high-volume injection tooling maker, precision mold parts factory China, fast lead time mold inserts, IATF 16949 injection mold components, modular tooling solutions.
Vacuum technical packaging and secure wooden crating for global precision components export.
