High-Precision Precision Mold Core Inserts for Complex Technical Tooling | Advanced CNC Machining Solutions by JST Mould
The Engineering Benchmark: Translating Intricate Designs into High-Durability Steel
In the competitive Tier-1 automotive and industrial sectors, the performance of a mold is defined by the precision of its core inserts. This precision-machined core block from JST Mould is a premier showcase of our ability to handle complex 3D geometries and high-aspect-ratio features. Specifically designed for technical plastic components—such as interior clips, functional housings, or electronic frames—this tool insert ensures that every part ejected meets the highest standards of dimensional stability and structural integrity. At JST Mould, we specialize in technical tooling that bridges the gap between ambitious digital concepts and flawless mass production.
Technical Mastery & Manufacturing Innovation Highlights
Micron-Level Core Geometry:
- Utilizing state-of-the-art 5-axis CNC milling, JST Mould achieves extreme accuracy on complex vertical cores. We maintain tolerances within +/- 0.005mm, ensuring that internal cavities in the molded parts are perfectly formed and function without mechanical interference.
Integrated Technical Engraving & Branding:

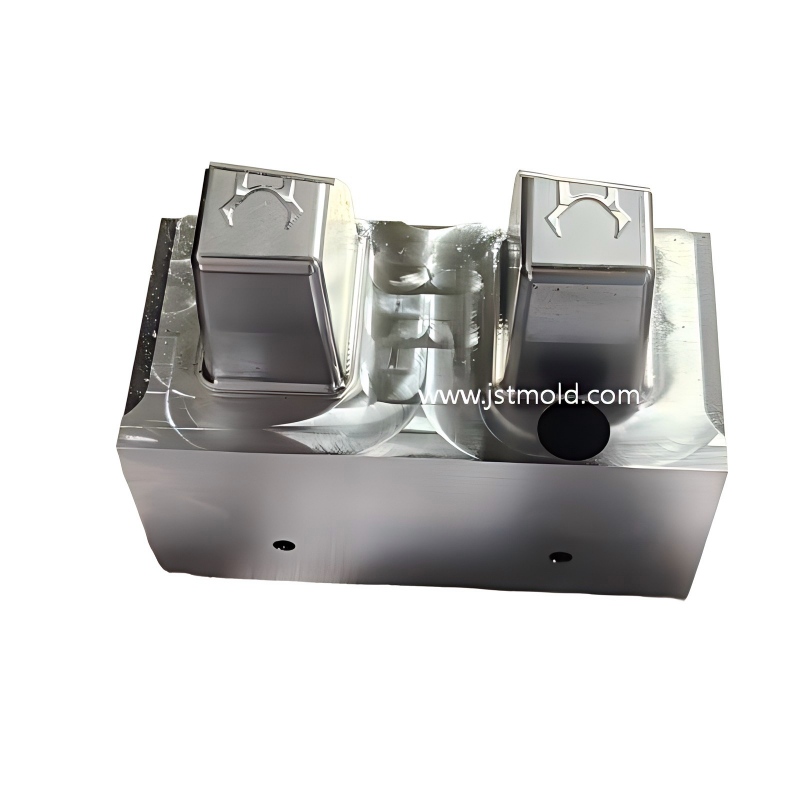

- As shown by the precision-milled logos on the core tops, we offer high-definition technical engraving directly into the mold steel. This is essential for permanent part branding and traceability in high-volume automotive and consumer programs.
Advanced De-molding & Draft Strategy:
- Every angle of this technical insert is optimized for rapid and clean part release. Our Design for Manufacturing (DFM) approach focuses on precision-timed ejection and strategic venting to prevent surface drag marks and ensure a flawless technical finish on every unit.
Hardened Steel Integrity for Long-Term ROI:
- Manufactured from premium tool steels (such as S136, H13, or NAK80) and vacuum heat-treated to HRC 50-54. This high-hardness material ensures the insert maintains its sharp features and dimensional registration through millions of high-pressure injection cycles.
JST Mould: Your Strategic Partner for Rapid Market Launch
Bespoke Technical Customization:
- We act as your engineering consultant, not just a fabricator. Every project begins with a deep design review to optimize material usage and cycle times, ensuring a cost-effective path to mass production.
Guaranteed Fast Lead Times:
- We understand that "Time-to-Market" is your most critical KPI. JST Mould offers a streamlined manufacturing workflow that delivers high-precision T1 samples and production-ready inserts with industry-leading speed.
Tier-1 Quality & Global Reliability:
- Operating under strict IATF 16949 and ISO 9001 protocols, our facility delivers consistent, zero-defect tooling assets. We provide full CMM inspection reports with every tool, ensuring our components are global-ready for immediate production in any international facility.
Quick Technical Performance Specs
Component Category: High-Precision Mold Core Block / Technical Tooling Insert
Application Industry: Automotive Interiors, Technical Electronics, Industrial Enclosures
Manufacturing Process: Precision Multi-Axis CNC Milling, Mirror EDM, Technical Engraving
Steel Material Grade: Premium Hardened Tool Steel (S136, 1.2344, NAK80)
Accuracy Level: Micron-level dimensional registration within +/- 0.005mm
Surface Standards: Fine Machined Technical Finish / Texture Ready
Mold Life Rating: Designed for High-Volume Production (1,000,000+ Shots)
Service Model: Full Turnkey OEM/ODM Design, Tooling, and Mass Production Support
SEO Search Tags (Long-Tail Focus)
Precision mold core manufacturer, custom CNC machined tool inserts, JST Mould technical tooling, car interior plastic part mold, Tier-1 automotive plastic supplier China, high-volume injection tooling maker, custom mold core maker China, fast lead time mold inserts, IATF 16949 technical parts, industrial enclosure molding.

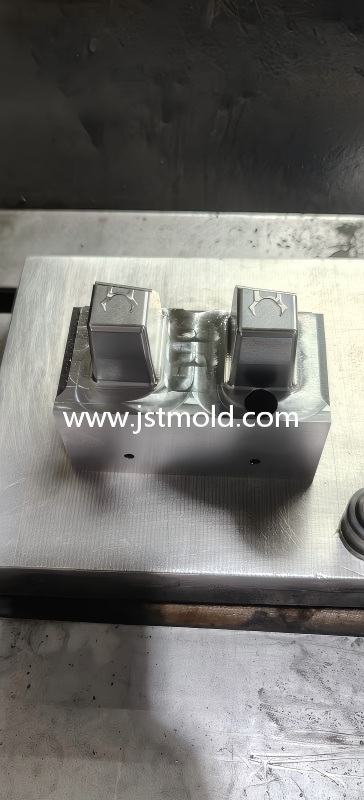

On-machine inspection of high-precision core inserts.
