Heavy-Duty Precision CNC Machined Mold Base Plates | Custom Tooling Foundations for Large-Scale Injection Molding by JST Mould
The Engineering of Stability: Mastering Large-Format Structural Tooling

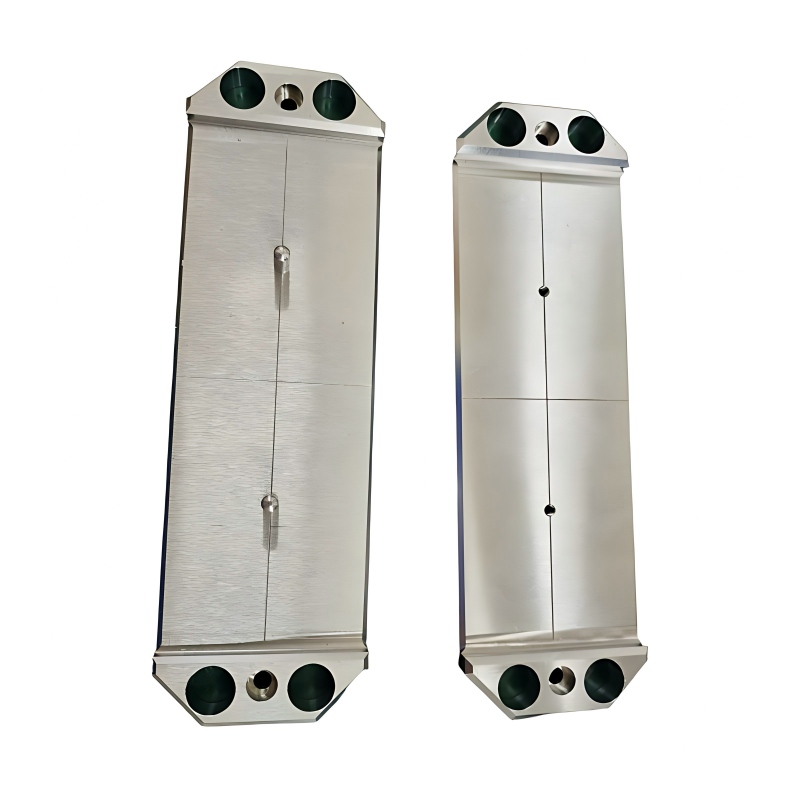

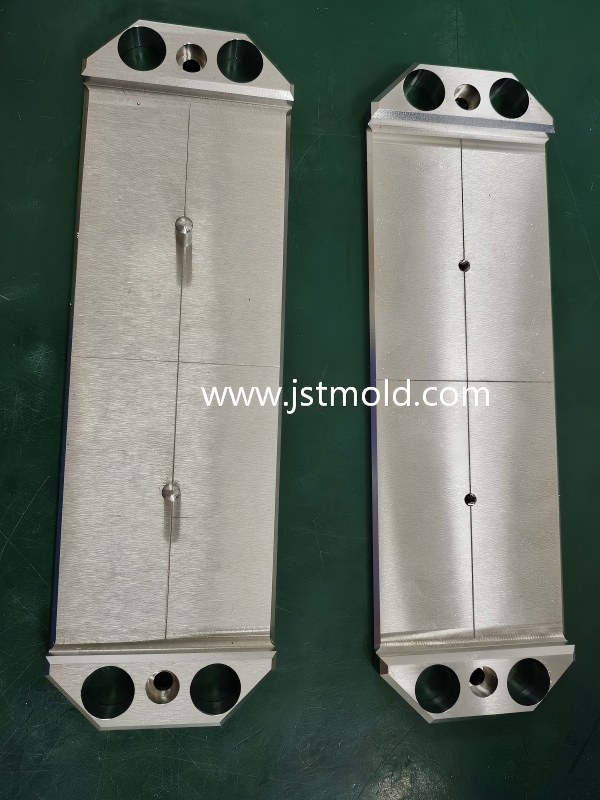

In the demanding environment of high-tonnage injection molding, the structural integrity of the mold base defines the long-term reliability of the production line. These precision-machined mold plates from JST Mould are a definitive showcase of our expertise in heavy-duty technical tooling. Designed for Tier-1 automotive and large-scale industrial projects—where components serve as critical retainers or structural supports—these plates must withstand extreme clamping forces while maintaining absolute dimensional alignment. We specialize in producing technical mold bases that ensure zero-tolerance registration, preventing core-shift and flash throughout millions of injection cycles.
Technical Mastery & Industrial Machining Highlights
Micron-Level Alignment & Boring Excellence:
- Each plate features precision-bored apertures at both ends for guide pillars and locating systems. JST Mould utilizes advanced large-bed CNC milling and boring centers to ensure these critical features are accurate within +/- 0.01mm. The laser-etched crosshair center lines on the surface facilitate perfect axial registration during final tool assembly.
Superior Parallelism & Surface Flatness:
- Achieving absolute flatness across a large surface area is a significant engineering hurdle. Our technical process utilizes stress-relieved steel and high-precision face milling to ensure perfect parallelism. This eliminates mechanical stress during mold closing, significantly extending the life of your cavity inserts and reducing maintenance downtime.
Heavy-Duty Material Resilience:
- We offer personalized customization for premium pre-hardened or hardened steels, including 1.2738H, 718H, and P20. These materials are selected for their superior compressive strength and thermal stability, ensuring the mold base remains dimensionally stable under the heat and pressure of 24/7 industrial manufacturing.
Optimized for Large-Tonnage Integration:
- Engineered specifically for 1000T to 3000T injection molding systems. JST Mould understands the kinetics of large-scale manufacturing, delivering robust steel assets that provide a stable, vibration-free foundation for complex automotive and appliance modules.
JST Mould: Your Strategic Partner for Large-Scale Engineering
Engineering Consulting (DFM):
- We don't just follow drawings; we optimize them for structural longevity. Our team conducts thorough structural analysis to ensure rib placement and plate thickness are optimized for maximum rigidity and cost-effective production.
Guaranteed Fast Lead Times for Global Export:
- We understand the urgency of global vehicle program launches. JST Mould offers a streamlined "Fast-Track" manufacturing workflow, delivering high-precision mold bases and technical plates with industry-leading speed to our partners worldwide.
Verified Tier-1 Quality Standards:
- Every massive plate undergoes rigorous 3D CMM inspection and ultrasonic testing for material integrity. We provide full inspection data and material certifications, ensuring JST Mould remains the most trusted source for global OEMs seeking technical manufacturing agility from China.
Quick Technical Performance Specs
Component Category: Precision Mold Base Plate / Retainer Plate / Support Block
Application Industry: Automotive Structural Molds, Large Appliances, Industrial Tooling
Manufacturing Process: Large-Bed High-Precision CNC Milling, Precision Boring, Grinding
Steel Material Grade: Premium Hardened Tool Steel (P20, 718H, 1.2738H, or H13)
Precision Tolerance: Micron-level dimensional registration within +/- 0.015mm
Surface Finish: Fine Technical Machining Finish / Precision Ground Ready
Mold Life Rating: Designed for High-Volume Reliability (1,000,000+ Shots)
Service Model: Full Turnkey OEM/ODM Tooling Fabrication and Global Export
