The Engineering of Durability: Mastering OEM Surface Standards for Premium Automotive Systems
In the Tier-1 automotive sector, success is defined by the ability to meet the most rigorous technical specifications. This precision-stamped metal component is the technical prototype that secured JST Mould a major mass-production contract for a premium BMW floor mat system. Designed to integrate seamlessly with technical plastic modules, this part represents our mastery in managing high-performance surface treatments that exceed industry norms. We specialize in producing integrated plastic-metal assemblies that prioritize absolute dimensional stability and extreme corrosion resistance for global automotive OEMs.
This is a non-sensitive engineering sample used to validate our BMW GS 90010 process capability. We treat all client production designs with 100% confidentiality.
Technical Mastery & Surface Science Highlights
BMW GS 90010 Nr.45 Standard Compliance:
- This component is engineered to meet the elite BMW GS 90010 specification. JST Mould ensures that every technical requirement—from coating thickness to chemical composition—is met with 100% accuracy, providing a reliable foundation for long-term vehicle interior and structural integrity.
Extreme 720-Hour Salt Spray Performance (SSN):
- Featuring an advanced ZNS3 (Zinc-Nickel) technical finish. Our surface engineering ensures the part withstands 720 hours of Neutral Salt Spray testing without red rust, a critical requirement for parts exposed to moisture and mechanical stress. This level of protection is standard for JST Mould’s high-durability technical components.
Precision Stamping & Micron-Level Aperture Control:

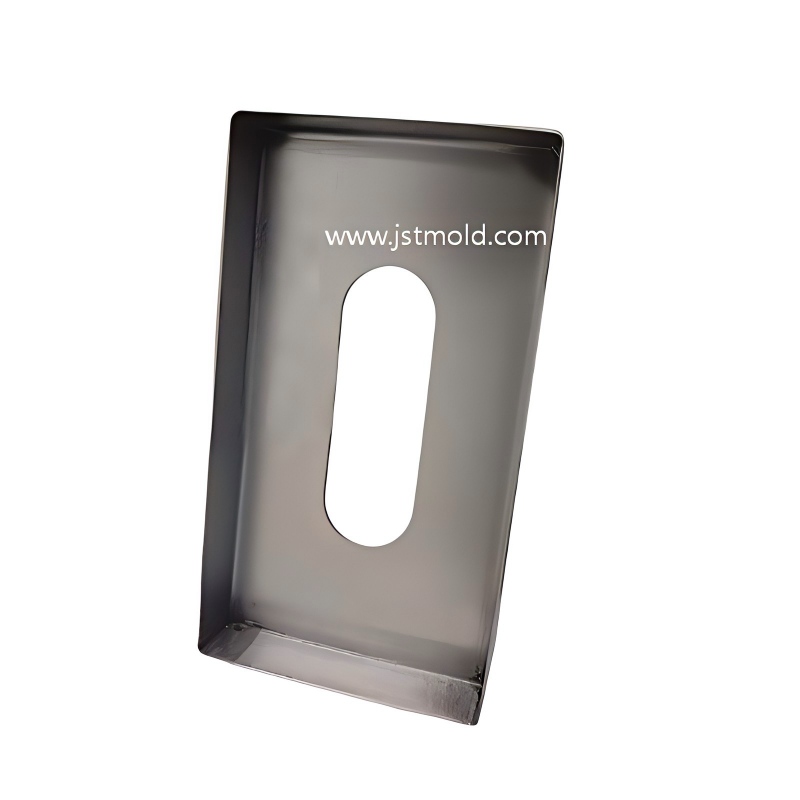

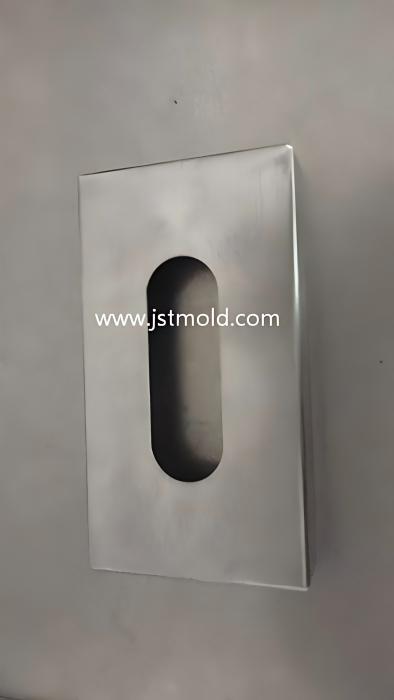

- The component features a high-definition oval cutout and precision-bent flanges. Utilizing high-speed progressive dies, we maintain tolerances within +/- 0.015mm, ensuring a perfect mechanical fit during the overmolding or sub-assembly process with plastic modules.
Confidential & Secure Project Management:
- We understand the critical nature of Intellectual Property (IP). While this sample showcases our process capability, JST Mould maintains the highest levels of confidentiality for our clients' final production designs, providing a secure and trusted engineering partnership for sensitive Tier-1 programs.
JST Mould: Your Strategic Partner for High-Stakes Automotive Contracts
Engineering Consulting for Material Synergy:
- We don't just manufacture parts; we optimize the interaction between plastic and metal. Our team provides in-depth DFM (Design for Manufacturing) analysis to ensure perfect bonding and thermal expansion compatibility.
Guaranteed Fast-Track Development:
- We understand that winning an OEM contract requires rapid response. JST Mould offers industry-leading lead times for high-precision technical samples, helping you secure your supply chain ahead of the competition.
Proven Tier-1 Quality Architecture:
- Operating under strict IATF 16949 protocols, our facility is optimized for high-volume, zero-defect manufacturing. We deliver the data, reports, and consistency that global automotive leaders demand.
Quick Technical Performance Specs
Component Category: Integrated Metal-Plastic Assembly / Technical Stamping Part
Standard Compliance: BMW GS 90010 Nr.45 / ZNS3 Plating Standard
Corrosion Resistance: 720 Hours Neutral Salt Spray Test (SSN) Certified
Primary Application: Automotive Interior Modules, Footwell Systems, Structural Fasteners
Material Compatibility: High-Strength Steel / Stainless Steel + Engineering Plastics
Precision Tolerance: Micron-level dimensional registration within +/- 0.015mm
Service Model: Full Turnkey OEM/ODM Design, Technical Tooling, and Mass Production
Lead Time Commitment: Rapid T1 Prototyping and Fast-Track Global Delivery
SEO Search Tags (Long-Tail Focus)
BMW GS 90010 surface treatment China, ZNS3 Zinc-Nickel plating manufacturer, JST Mould automotive parts, 720h salt spray resistance plastic parts, custom metal-plastic overmolding, Tier-1 automotive supplier China, high-volume car floor mat components, precision metal stamping for BMW, fast lead time automotive tooling, IATF 16949 metal components China.
Does your project require Salt Spray Neutral (SSN) or Copper-Accelerated (CASS)? We have verified supply chains for both to meet OEM longevity targets.
