Executive Briefing: Engineering the Backbone of Modern Vehicle Cockpits

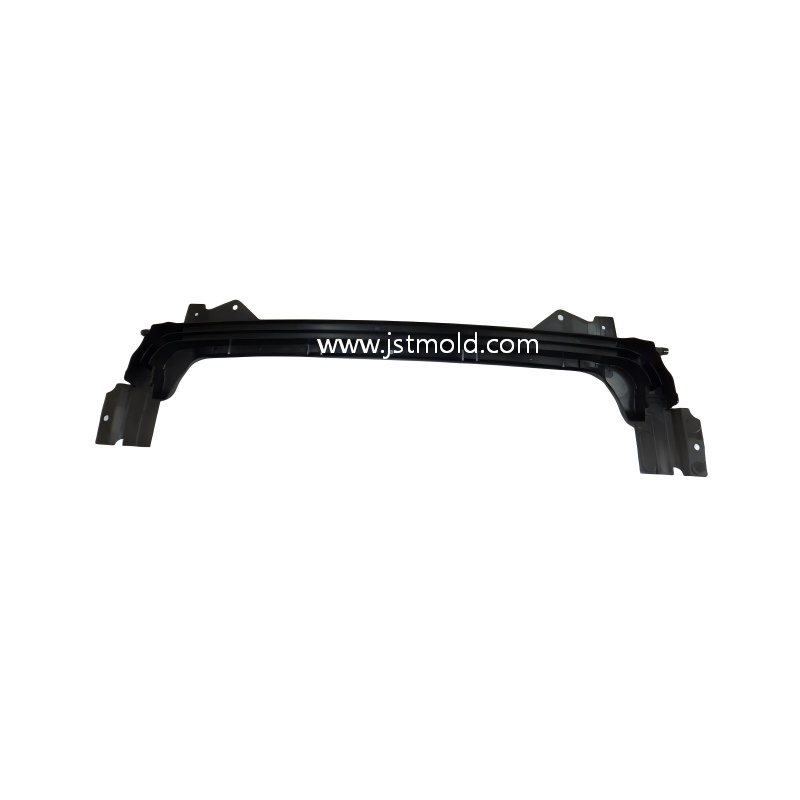

In the Tier-1 automotive architecture, structural integrity is the foundation of vehicle safety and interior longevity. This large-scale, precision-molded dashboard carrier substrate from JST Mould represents a masterclass in high-strength thermoplastic engineering. Designed for high-load applications such as instrument panel frames, front-end carriers, or cross-car beam supports, these components must provide absolute mechanical rigidity while maintaining absolute dimensional stability across a high-aspect-ratio profile. We specialize in providing global OEMs with technical structural solutions that drive vehicle lightweighting without compromising performance.
Technical Mastery & Structural Innovation Highlights
-
Complex Long-Stroke Geometric Stability: Manufacturing long, curved structural frames presents a high risk of "banana-effect" warping. JST Mould utilizes advanced technical tooling with high-pressure injection kinetics and optimized conformal cooling layouts to ensure absolute longitudinal straightness and micron-level registration across the entire length of the component.
-
High-Performance Material & Weight Reduction: We specialize in processing advanced engineering resins, including glass-fiber reinforced Polypropylene (PP+GF30/50), Polyamides (PA66+GF), and high-impact PC/ABS. These materials are engineered to replace traditional steel sub-frames, offering up to 30% weight reduction while maintaining superior crashworthiness and fatigue resistance.
-
Integrated Mechanical Functionalization: This component features a sophisticated network of reinforced mounting bosses, integrated fastener seats, and structural ribbing architectures. JST Mould ensures that every functional port is accurate to within +/- 0.015mm, guaranteeing a seamless "first-time-right" assembly on high-speed automated vehicle production lines.
-
Advanced NVH & Acoustic Engineering: Our structural designs are optimized for Noise, Vibration, and Harshness (NVH) suppression. Through strategic rib placement and uniform wall thickness management, we deliver components that significantly reduce cockpit rattles and improve the overall acoustic quality of the vehicle cabin.
The JST Mould Strategic Advantage: Precision, Speed, and Reliability
-
Engineering Consulting & DFM Leadership: At JST Mould, our partnership begins at the concept phase. We provide comprehensive Mold Flow and FEA (Finite Element Analysis) to optimize structural performance and gating locations before the tool is built, reducing total project risk.
-
Fast-Track Technical Tooling: We understand the urgency of new vehicle program launches. JST Mould offers a streamlined manufacturing workflow that delivers high-precision T1 structural samples and production-ready heavy-duty molds with industry-leading lead times.
-
Global Tier-1 Supply Chain Excellence: Operating under strict IATF 16949 quality protocols, our facility is engineered for 24/7 high-volume manufacturing. We deliver consistent, zero-defect structural modules that empower our global partners to scale their automotive programs with total confidence.
Quick Technical Performance Digest
-
Component Category: Precision Automotive Structural Frame / Dashboard Carrier Substrate
-
Primary Application: Cross-Car Beams, Instrument Panel Brackets, Front-End Carriers
-
Manufacturing Process: Heavy-Duty Deep-Draw Technical Injection Molding
-
Material Compatibility: High-Strength PP+GF, PA66+GF, PC/ABS (Customizable)
-
Precision Tolerance: Micron-level dimensional registration within +/- 0.02mm
-
Structural Feature: High-density reinforcement ribbing & integrated mounting systems
-
Service Model: Full Turnkey OEM/ODM Design, Technical Tooling, and Mass Production
-
Quality Certification: Fully compliant with IATF 16949 and ISO 9001 Standards
