High-Precision Technical Mold Inserts with Integrated Copper Thermal Management | Engineering Excellence by JST Mould
The Engineering of Thermal Synergy: Mastering Steel and Copper Integration
In high-cycle technical molding, thermal management is the deciding factor for part quality and production ROI. This precision-engineered mold insert assembly from JST Mould is a definitive showcase of our expertise in heterogenous material processing. By integrating premium hardened tool steel with high-conductivity copper alloy inserts, we provide Tier-1 automotive and electronic partners with tooling solutions that offer rapid heat dissipation and absolute dimensional stability. We specialize in producing complex technical modules that handle high-density geometric features while ensuring a stable, high-speed manufacturing environment.
Technical Mastery & Innovative Machining Highlights
High-Density Micro-Aperture Engineering:
- The core insert features a sophisticated linear array of high-aspect-ratio slots and circular ports. JST Mould utilizes advanced micro-EDM and high-speed CNC milling to ensure every aperture is accurate to within +/- 0.005mm. This extreme precision is vital for applications requiring complex venting or secondary mechanical pin movement.
Integrated High-Efficiency Copper Cooling:

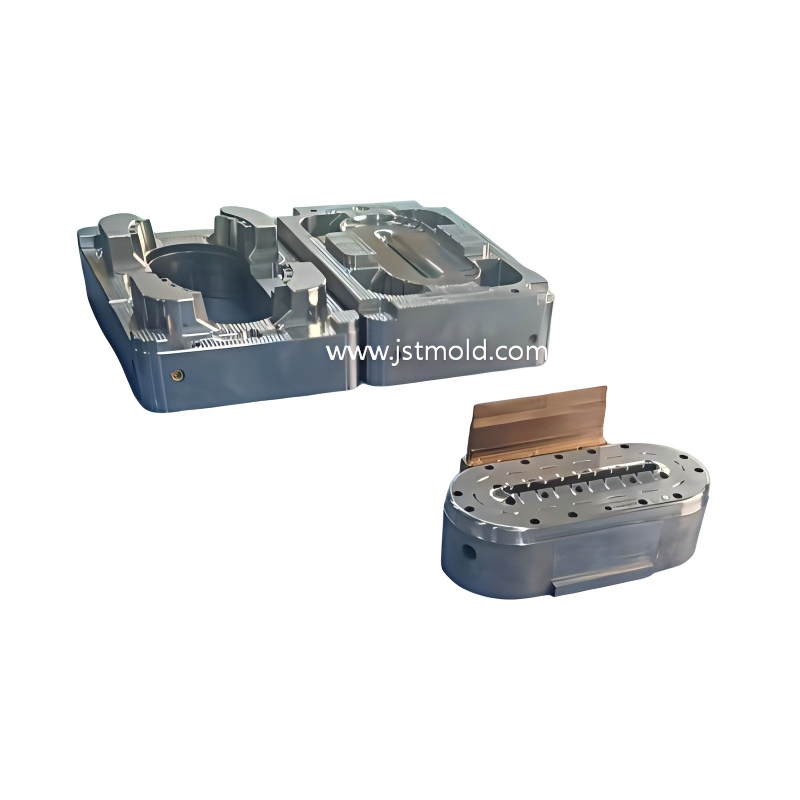

- Featuring a precision-fitted copper thermal insert (visible at the base). Our technical process ensures a seamless thermal bridge between the copper and the steel cavity, significantly reducing cooling times by up to 30% and preventing the warping commonly found in deep-draw technical components.
Complex Multi-Level Cavity Machining:
- The main mold base demonstrates our mastery in large-surface precision milling. Each interface is ground and fitted to ensure micron-level registration, eliminating parting line flash and maintaining structural integrity under the extreme clamping forces of 24/7 industrial production.
Hardened Tool Steel Longevity:
- Manufactured from certified steels such as S136, 1.2344, or NAK80, hardened to HRC 48-52. This material choice, combined with our technical surface finishing, guarantees a tool life exceeding 1,000,000 shots while maintaining the sharp edges required for precision technical parts.
We integrated a high-conductivity copper thermal bridge into this specific core. This allows us to extract heat from the deep-cavity zone much faster than steel alone, effectively shortening your cycle time and eliminating the risk of sink marks or thermal warping.
JST Mould: Your Strategic Partner for High-Performance Tooling
DFM-Led Innovation & Rapid Prototyping:
- We don't just build tools; we optimize them. Every project begins with a comprehensive Design for Manufacturing (DFM) and Mold Flow analysis to ensure your complex designs are production-ready from the first shot.
Guaranteed Fast-Track Delivery:
- We understand that "Speed-to-Market" is non-negotiable. JST Mould offers a streamlined technical workflow, delivering high-precision T1 samples and production-ready inserts with industry-leading turnaround times.
Global Tier-1 Quality Compliance:
- Operating under strict IATF 16949 and ISO 9001 protocols, our facility delivers zero-defect manufacturing assets. We provide full material certifications and 3D CMM dimensional reports, ensuring JST Mould remains the most trusted partner in your high-tech supply chain.
Quick Technical Performance Specs
Component Category: High-Precision Technical Mold Core / Thermal Management Insert
Primary Application: Automotive Internal Modules, High-Flow Fluid Connectors, Electronic Frames
Manufacturing Process: High-Speed 5-Axis CNC, Precision Micro-EDM, Material Integration
Material Compatibility: Hardened Steel (S136, 1.2344) + High-Conductivity Copper
Precision Tolerance: Micron-level dimensional registration within +/- 0.005mm
Surface Standards: Fine Technical Machining Finish / Texture Ready
Mold Life Rating: Designed for High-Volume Production (1,000,000+ Shots)
Service Model: Full Turnkey OEM/ODM Tooling Design and Mass Production Support
