High-Precision Amber Translucent Automotive Lenses | Custom Optical Molding for Signal Modules by JST Mould
The Engineering Logic of Symmetrical Optical Components

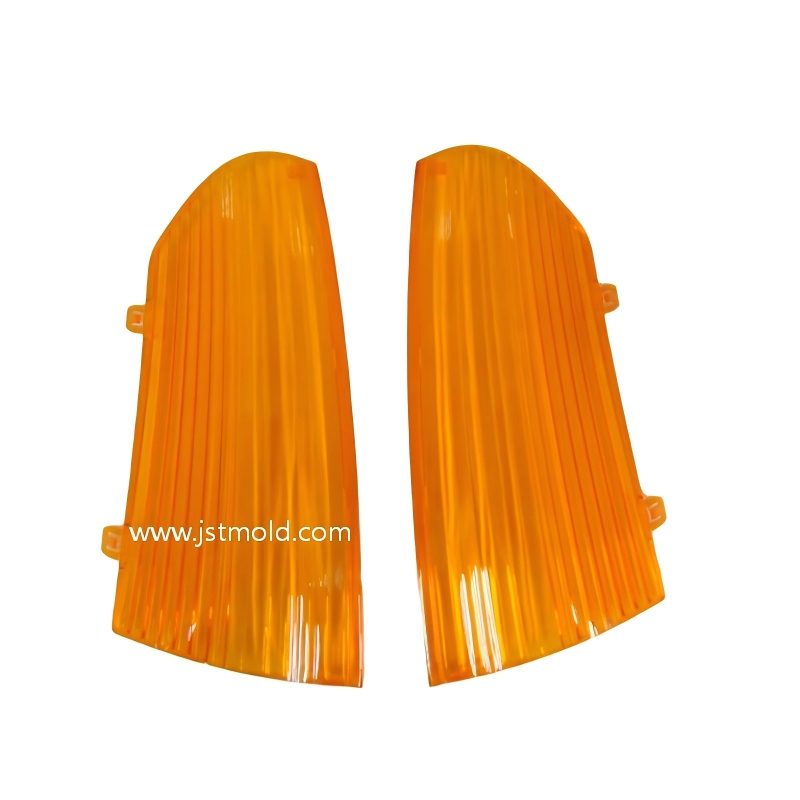

In the Tier-1 automotive signaling sector, the performance of an indicator lens is defined by its photometric clarity and geometric symmetry. This matched set of amber translucent lenses from JST Mould is engineered to meet the rigorous SAE and ECE standards for vehicle visibility. Designed as a Left-Hand (LH) and Right-Hand (RH) pair, these components feature intricate internal linear textures for optimal light diffusion. We specialize in producing technical optical lenses that demand absolute material purity and micron-level fitment to ensure a hermetic seal within the lamp assembly.
Technical Innovation & Manufacturing Excellence
-
Precision Prismatic Surface Engineering: Utilizing high-speed diamond milling and mirror EDM, JST Mould ensures that every internal louver and prismatic facet is rendered with absolute repeatability. This optimizes the light beam pattern and ensures compliance with global automotive brightness regulations.
-
Balanced Multi-Cavity Flow Management: Molding translucent PMMA or PC requires expert control over melt kinetics. Our engineering team utilizes advanced Mold Flow simulation to ensure balanced filling between LH and RH cavities, eliminating flow lines or silver streaks that could compromise optical performance.
-
High-Performance Material Stabilization: We offer personalized customization for optical-grade resins, including UV-stabilized amber PMMA and high-heat PC. These materials are selected for their long-term resistance to environmental yellowing and thermal stress from high-intensity LED sources.
-
Sealing Integrity for IP67 Standards: The lens periphery is engineered with precision-fit flanges optimized for ultrasonic welding or glue-track sealing. Our technical tooling ensures a +/- 0.01mm tolerance, providing a leak-proof interface that protects sensitive internal electronics.
Quick Technical Digest
-
Category: Precision Automotive Signal Lens / Matched LH-RH Set
-
Primary Application: Turn Signals, Side Marker Lights, Mirror Indicators
-
Process: Technical Optical-Grade Injection Molding
-
Material: UV-Stabilized PMMA, Optical PC (Customizable)
-
Surface: SPI A-1 Mirror Polish / Internal Prismatic Texture
-
Quality Certification: Fully compliant with IATF 16949 Standards
