High-Precision 90-Degree Large-Diameter Plastic Elbow Fitting | Custom Industrial Molding Solutions by JST Mold
Engineering Mastery in Complex Fluid Dynamics and Structural Tooling

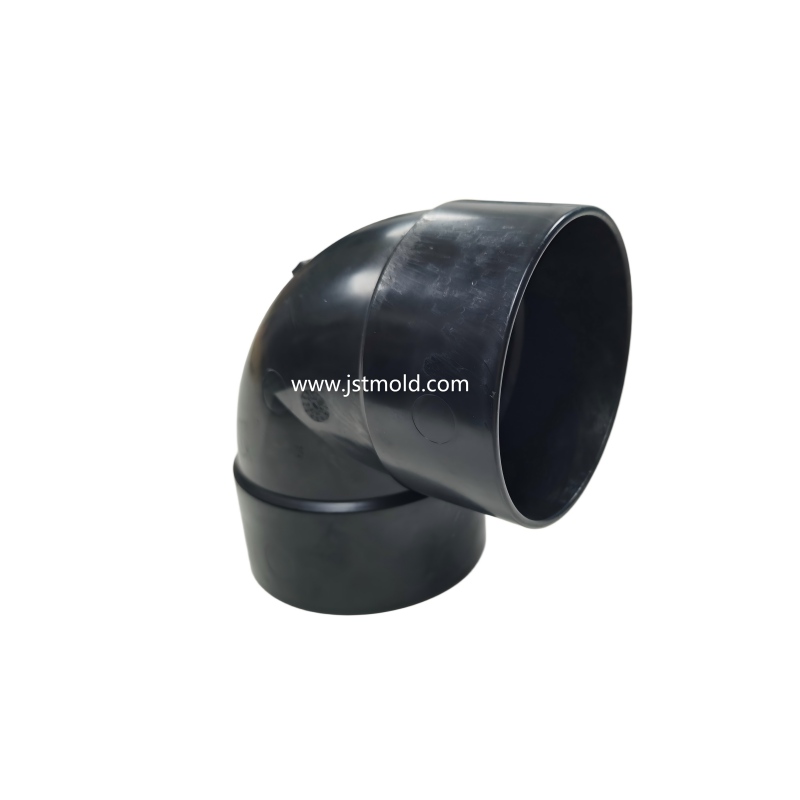

This high-precision 90-degree elbow fitting is a premier example of JST Mold’s expertise in manufacturing complex, large-diameter hollow components for the industrial and automotive sectors. Designed for high-performance fluid management, air intake systems, or industrial HVAC ducting, this part handles the dual challenges of internal flow efficiency and structural mechanical strength. At JST Mold, we specialize in technical molding solutions that ensure uniform wall thickness across sharp curvatures, providing a reliable foundation for leak-proof and high-pressure operational environments.
Technical Innovation in Large-Format Hollow Molding
Molding large-diameter curved parts requires advanced core-pulling mechanisms and expert parting line management to ensure seamless assembly. This component features a smooth internal bore to minimize turbulence and friction, demonstrating our technical mastery in high-end mold design. Every project benefits from personalized customization, allowing you to select from a range of high-performance resins—including impact-resistant ABS, chemical-resistant Polypropylene (PP), or heat-stabilized Polyamide (PA66). Our engineering team utilizes advanced Mold Flow simulation to ensure zero structural weak points and absolute dimensional stability during high-volume production cycles.
Operational Efficiency and Guaranteed Fast Delivery
In the fast-moving global industrial supply chain, speed and reliability are your ultimate competitive advantages. JST Mold offers a streamlined turnkey workflow from initial 3D design to large-scale mass production with industry-leading efficiency. Our in-house precision tooling facility is optimized for rapid development, providing an industry-leading turnaround for T1 samples and guaranteed lead times. We are committed to on-time delivery and strictly adhere to IATF 16949 quality protocols, empowering our global partners to scale their infrastructure and vehicle programs with total confidence in their manufacturing supply chain.
Technical Specifications Overview
Key Words Tags
Custom plastic elbow fitting, 90-degree injection molding, JST Mold precision engineering, industrial pipe fitting mold, automotive air intake parts, Tier-1 industrial plastic supplier, large diameter plastic molding, high-volume injection tool, custom mold maker China, fast lead time plastic parts.
