Industrial Enclosure Insert | Precision Mold Component
High-Performance Custom Mold Insert for Precision Industrial Enclosures | Engineering Mastery by JST Mold
Specifications
- Material:
- ABS / PC / PC+ABS (Industrial High-Impact)
- Process:
- High-Speed CNC Machining / Precision EDM
- Tolerance:
- +/- 0.05mm (Tight Clearance Control)
- Surface Finish:
- VDI 3400 Ref. 24 / SPI-B2 Fine Finish
- Mold Steel:
- 1.2344 ESR / S136 (Hardened HRC 48-52)
- Quality Control:
- 100% CMM Validation / Dimensional Report
- Service Scope:
- DFM / Custom Insert Fabrication / Mass Production
Strategic Manufacturing Brief: Transforming Digital Designs into High-Volume Reality
In the competitive landscape of technical plastic manufacturing, the difference between a successful product launch and a costly delay lies in the precision of the tooling. This precision-engineered mold insert from JST Mold is a premier example of how we help our global partners achieve market-leading quality. Designed for complex industrial enclosures and automotive internal modules, this tool addresses the critical challenges of deep-cavity molding and large-surface dimensional stability, ensuring your components function perfectly from the very first shot.
Technical Engineering & Machining Excellence
- Deep-Draw Geometric Mastery: This insert is specifically engineered to facilitate optimal material flow into deep, technical cavities. Our design-for-manufacturing (DFM) approach ensures uniform wall thickness and prevents vacuum-induced deformation during ejection.

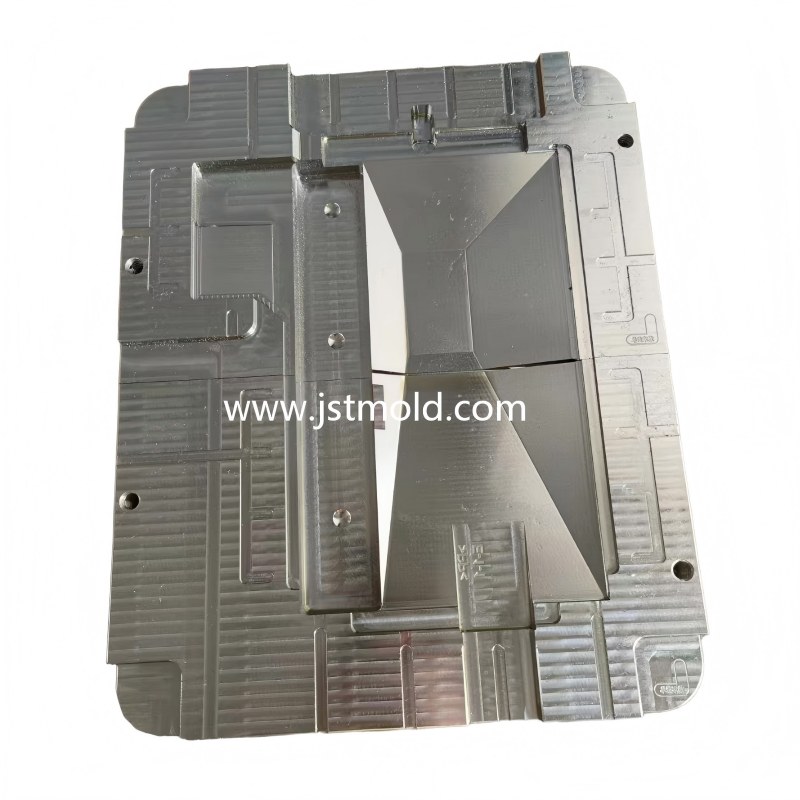

- Micron-Level Surface Precision: The high-quality CNC machining paths visible on the mold surface highlight JST Mold’s ability to maintain tight tolerances (+/- 0.01mm) across multi-level structural features. This ensures seamless assembly for parts with integrated snap-fits and mounting interfaces.
- Advanced Thermal Control: We utilize specialized internal cooling channel layouts that follow the part's contour. This high-efficiency thermal management significantly reduces cycle times and prevents thermal warping, delivering a stable and cost-effective production environment.
- High-Grade Hardened Steel Longevity: Constructed from premium steels (such as 1.2344, S136, or NAK80) hardened to HRC 48-52. This material choice guarantees a production life of 1,000,000+ cycles while maintaining sharp parting lines and flawless surface finishes against abrasive engineering resins.
Global Partnership: Quick Lead Times & Personalized Customization
JST Mold is more than a supplier; we are your strategic engineering partner. We understand that "Time-to-Market" is your most critical KPI.
- Fast-Track Prototyping: Leveraging our in-house high-speed machining centers, we offer rapid T1 sample delivery to move your project from design validation to mass production ahead of schedule.
- Bespoke Customization: We provide personalized solutions for every project, from specialized material selection to custom surface texturing (VDI, MT, or SPI standards) tailored to your brand’s requirements.
- Tier-1 Quality Standards: Every tool undergoes a rigorous 3D CMM inspection and full validation trial. We strictly adhere to IATF 16949 and ISO 9001 protocols, ensuring our molds are global-ready for immediate production in any international facility.
Technical Specifications At-a-Glance
- Component Type: Precision Multi-Level Cavity/Core Insert
- Primary Application: Industrial Enclosures, Automotive Structural Modules, Technical Housings
- Steel Material: Premium Hardened Tool Steel (H13, S136, 718H)
- Precision Tolerance: +/- 0.01mm (Micron Level)
- Surface Quality: Fine Technical Machining / Texture Ready
- Mold Life: High-Volume Rating (1,000,000+ Shots)
- Service Model: Turnkey OEM/ODM Design, Tooling, and High-Volume Production
