Transparent Container Mold | Optical Precision & High-Cycle

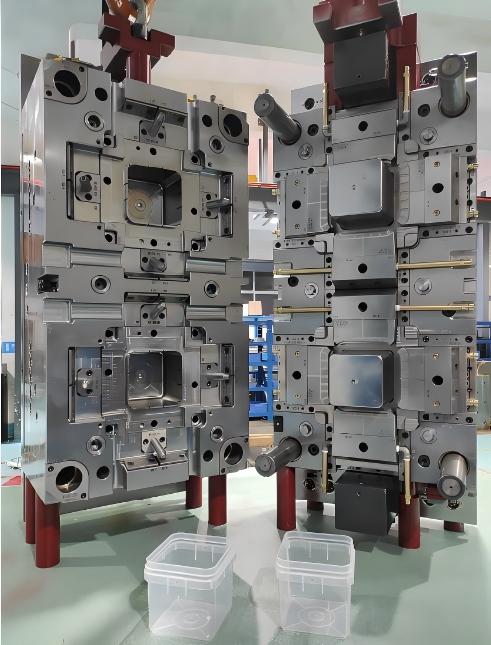

High-Efficiency 2-Cavity Precision Injection Mold for Transparent Containers | JST Mold Engineering Solutions
Specifications
- Material:
- PS / AS / PETG / PC (Optical Grade / High-Clarity)
- Process:
- High-Speed Precision Molding (Optimized for Thin-Wall Efficiency)
- Mechanism:
- Synchronized Stripper Plate / Integrated Air Poppet System
- Tolerance:
- +/- 0.03mm (Strict Wall Uniformity & Zero-Flash Control)
- Surface Finish:
- SPI-A1 Super-Mirror Polish (Ensures Maximum Transparency)
- Mold Steel:
- S136 ESR / 1.2083 (Vacuum Hardened HRC 50-54 for Mirror Stability)
- Quality Control:
- 1.0M Shots Warranty / Optical Distortion Analysis / CMM Report
Product Description:
Precision 2-cavity mold engineered for high-clarity containers requiring zero-defect surface quality and rapid cycle times. Features premium ESR-grade stainless steel to ensure anti-corrosion and long-term mirror finish stability. Optimized for high-speed automated production with synchronized ejection mechanisms, delivering consistent transparency and dimensional accuracy for Tier-1 packaging and medical-grade applications.
Engineering Mastery in High-Clarity Plastic Molding
This high-performance 2-cavity injection mold is specifically engineered by JST Mold for the production of high-clarity, thin-walled transparent containers. Achieving flawless optical transparency in mass production is a significant technical challenge; this mold addresses it through precision-balanced gating and advanced venting strategies. Designed for the household appliance, medical, and food packaging sectors, this tooling ensures that every part is free from flow marks, bubbles, or silver streaks—delivering a "crystal-clear" finish that meets the most demanding aesthetic and safety standards.
Technical Innovations for High-Volume Production
At JST Mold, we prioritize manufacturing efficiency without compromising quality. This mold features a highly symmetrical 2-cavity layout, effectively doubling production output while maintaining absolute dimensional consistency across both units. Utilizing high-speed CNC machining and mirror-polished cavity surfaces (SPI A-1 standard), we minimize friction and ensure rapid, clean part ejection. The integrated high-efficiency cooling system is strategically designed to prevent thermal warping in thin-wall sections, allowing for high-speed injection cycles and a significantly faster Return on Investment (ROI) for our clients.
Personalized Customization and Fast lead Time Guarantee
We understand that speed-to-market is the ultimate competitive advantage. JST Mold offers personalized customization for every project, providing comprehensive Design for Manufacturing (DFM) analysis to optimize your product for large-scale manufacturing. Our in-house tooling facility enables a "fast-track" production model, delivering high-precision T1 samples with a guaranteed lead time. Whether you require medical-grade Polypropylene (PP), high-clarity Polystyrene (PS), or PC resins, JST Mold provides a reliable, turnkey manufacturing partnership that adheres to strict IATF 16949 quality protocols.
Technical Specifications Overview
- Product Category: High-Precision Multi-Cavity Transparent Mold
- Cavity Count: 2-Cavity (High-Volume Optimized)
- Primary Application: Transparent Storage Bins, Medical Enclosures, Food-Grade Containers
- Material Compatibility: High-Clarity PP, PS, PC, or AS Resins
- Surface Quality: SPI A-1 Mirror Polish / Optical Grade Clarity
- Precision Tolerance: Strict dimensional stability within +/- 0.01mm
- Tooling Steel: Premium Hardened Stainless S136 or NAK80 (HRC 48-52)
- Service Model: Full OEM/ODM Design, Tooling Fabrication, and Mass Production
- Delivery Performance: Rapid Prototyping and Guaranteed On-Time Delivery Schedules
