Strategic Engineering: Extra-Large Precision Automotive Injection Mold for Integrated Structural Modules | JST Mold Heavy-Duty Excellence
Executive Briefing: Mastering the Scale and Complexity of Modern Vehicle Architecture
In the Tier-1 automotive industry, the demand for large, integrated structural parts—such as dashboard carriers, door module substrates, and center console frames—requires an elite level of tooling engineering. This extra-large mold core from JST Mold represents a masterclass in heavy-duty manufacturing. Engineered to handle the massive clamping forces of 2000T to 3500T injection machines, this tool combines extreme structural rigidity with micron-level dimensional stability. At JST Mold, we transform your most ambitious digital designs into robust industrial assets that define the "fit and finish" of the global automotive marketplace.
Advanced Engineering Features & Design Innovations

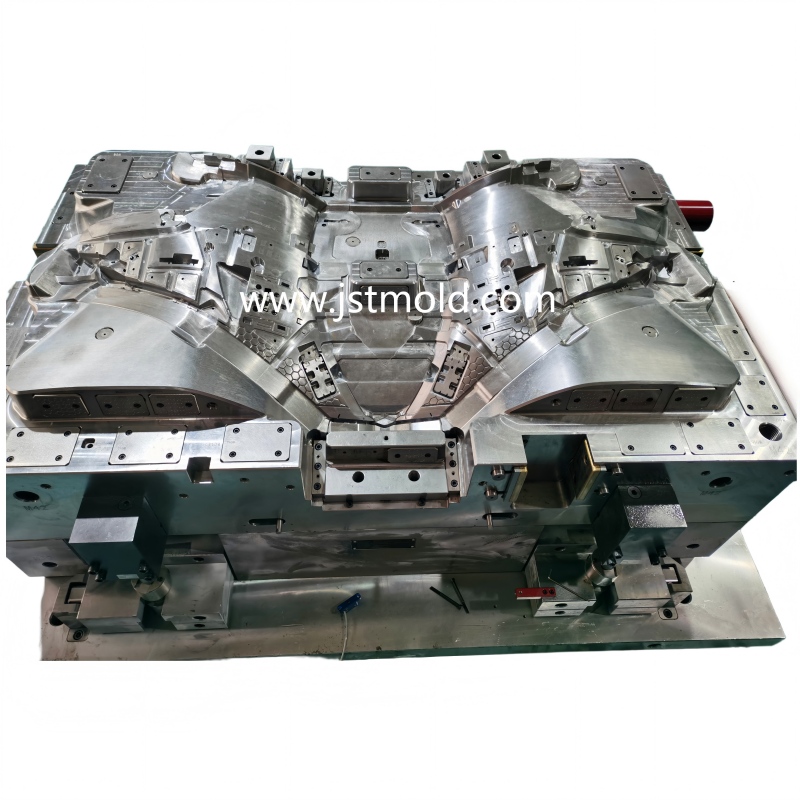

Precision Honeycomb Venting & Rib Integration: Notice the sophisticated honeycomb and multi-rib patterns across the massive core surface. These are precision-machined via 5-axis high-speed CNC to optimize part weight while maximizing structural strength. Our venting strategy ensures zero air traps in deep-draw sections, resulting in uniform part density and superior mechanical integrity.
Mastered Asymmetrical Deep-Draw Geometry: Specifically engineered to handle the complex, non-linear contours of modern vehicle interiors. JST Mold utilizes advanced Mold Flow simulation to optimize material flow and cooling layouts, effectively eliminating vacuum-induced deformation and preventing part warpage during high-speed ejection.
Robust Mechanism Management: The mold features a synchronized system of heavy-duty sliders and angled lifters, all manufactured from premium hardened tool steel. These mechanisms ensure the seamless de-molding of intricate lateral features and internal snap-fits, facilitating "right-first-time" assembly on the vehicle production line.
Premium Material Longevity for High-Volume Production: Constructed from high-grade tool steels (such as 1.2738H, 718H, or H13) hardened to HRC 48-54. This material choice ensures sharp parting lines and flawless surface finishes throughout a production life expectancy of over 1,000,000 high-pressure shots.
The JST Mold Global Advantage: Bespoke, Fast, and Reliable
Fast-Track Project Management: We understand that in the global supply chain, project speed is the ultimate competitive advantage. JST Mold offers an industry-leading turnaround for large-scale tooling, providing rapid T1 sample delivery and strictly adhering to global vehicle program milestones.
Personalized Technical Customization: Every project is treated as a unique engineering challenge. From initial DFM (Design for Manufacturing) analysis to custom surface texturing (VDI/MT) and machine-specific integration, we provide bespoke manufacturing solutions tailored to your plant’s needs.
Tier-1 Quality & Global Compliance: Every tool undergoes a rigorous 3D CMM inspection and full production trial. We strictly follow IATF 16949 and ISO 9001 protocols, ensuring our molds are global-ready for immediate, 24/7 operation in any international facility.
