High-Performance Automotive Intake Manifold Modules | Precision PA66+GF30 Technical Injection Molding by JST Mould
The Engineering Logic of Under-the-Hood Performance

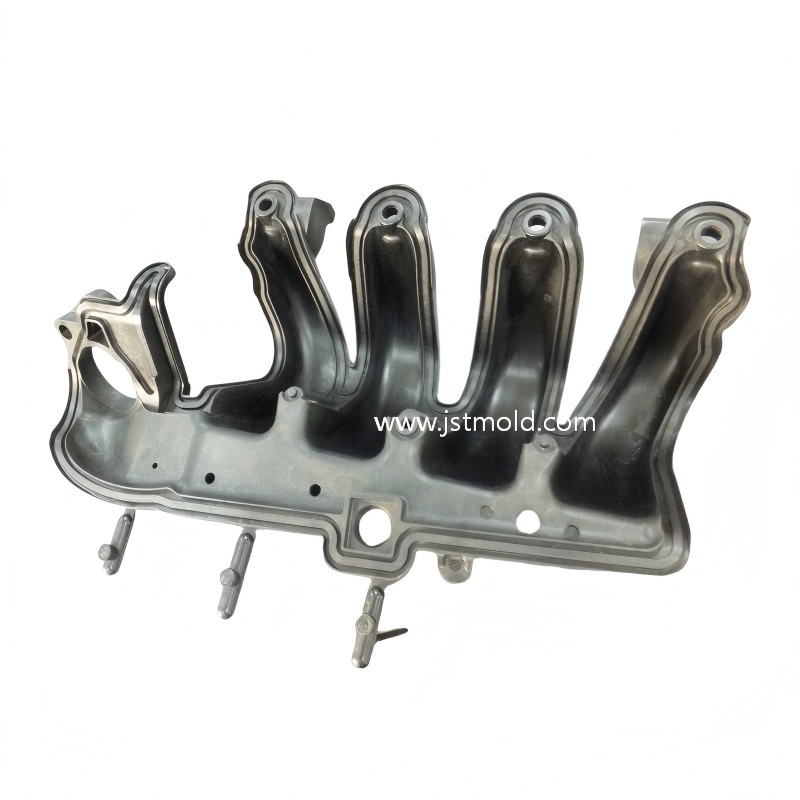

In the high-stress environment of an internal combustion engine, the intake manifold is a critical module that demands absolute structural integrity and thermal resilience. This precision-molded half-housing from JST Mould represents the pinnacle of technical thermoplastic engineering. Designed for complex airflow management, this component must withstand continuous high-pressure cycles and extreme heat deflection temperatures. We specialize in producing technical engine modules that replace traditional aluminum with high-strength glass-fiber reinforced polymers, driving vehicle lightweighting while ensuring peak engine efficiency.
Technical Mastery in Complex Functional Engine Tooling
-
Vibration Welding Interface Precision: This component features a sophisticated peripheral welding track. JST Mould ensures micron-level flatness across the entire sealing surface, a critical requirement for subsequent vibration welding processes to achieve a 100% leak-proof hermetic seal.
-
Optimized Glass-Fiber Orientation: Utilizing advanced Mold Flow and FEA (Finite Element Analysis), we optimize gating locations to control fiber orientation. This eliminates internal stress points and prevents the "banana-effect" warping, ensuring the manifold maintains its absolute dimensional stability under extreme under-the-hood thermal loads.
-
Mastery of Multi-Port Deep-Draw Geometry: Featuring an intricate array of intake runners and integrated mounting bosses. Our technical tooling utilizes high-speed 5-axis CNC and specialized venting strategies to ensure uniform wall thickness and zero surface defects, even in the deepest cavity sections of the runners.
-
High-Performance Material Engineering: We offer personalized customization for automotive-grade resins, specifically heat-stabilized PA66+GF30 / GF35. These materials are selected for their superior burst pressure resistance, chemical stability against fuels/oils, and high-impact durability throughout the vehicle's 15-year life cycle.
JST Mould Strategic Partnership: Speed, Customization, and Tier-1 Quality
-
Engineering Solutions for High-Tech Modules: We act as your strategic technical consultant. From initial Design for Manufacturing (DFM) to complex manifold assembly logic, we optimize your structural designs to reduce project risk and total manufacturing costs.
-
Fast-Track Tooling & T1 Sample Guarantee: We understand the intense pressure of engine program milestones. JST Mould offers a streamlined manufacturing workflow that delivers high-precision T1 samples and production-ready heavy-duty tooling with industry-leading lead times.
-
Proven Mass Production Scalability: Operating under strict IATF 16949 quality protocols, our facility is engineered for 24/7 high-volume manufacturing. We deliver consistent, zero-defect engine components that empower our global partners to scale their automotive programs with absolute confidence in their high-tech supply chain.
Quick Technical Performance Specs
-
Component Category: Precision Automotive Engine Module / Intake Manifold Substrate
-
Primary Application: Air Intake Systems, Turbocharger Resonators, Engine Shrouds
-
Manufacturing Process: Technical Deep-Draw Injection Molding for Vibration Welding
-
Material Compatibility: Heat-Stabilized PA66+GF30, PPA, or Reinforced PPS (Customizable)
-
Precision Tolerance: Micron-level dimensional registration within +/- 0.015mm
-
Surface Quality: Industrial Technical Finish / Sealing Surface Excellence
-
Service Model: Full Turnkey OEM/ODM Design, Technical Tooling, and Mass Production
-
Quality Certification: Fully compliant with IATF 16949 and ISO 9001 Standards
