High-Precision Automotive Door Handle Assemblies | Technical Multi-Component Tooling Solutions by JST Mould
The Engineering Complexity of Functional Cockpit Interfaces

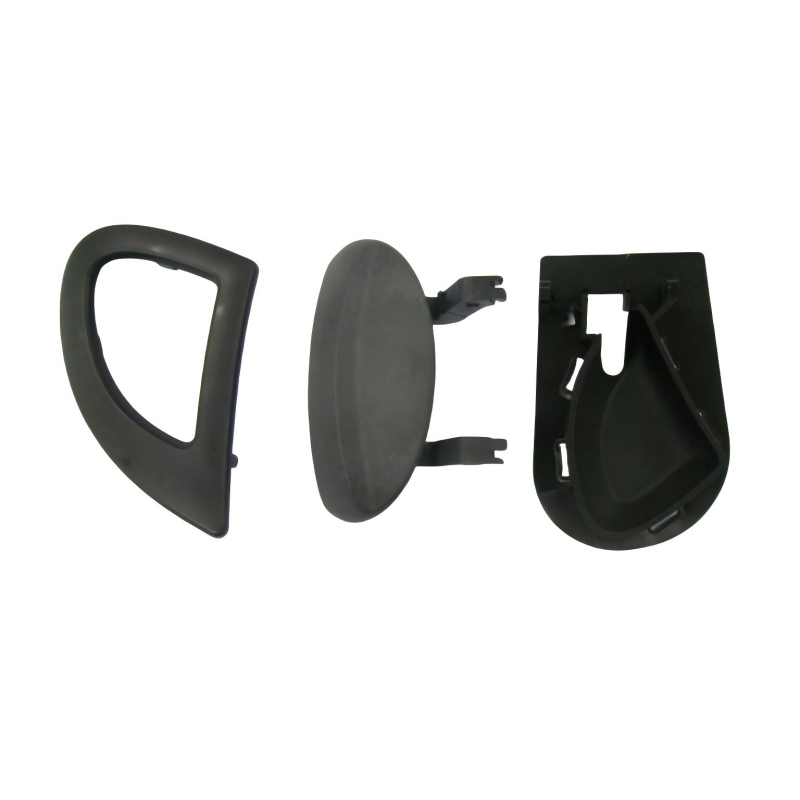

An automotive door handle is a complex assembly that must perform flawlessly over tens of thousands of cycles. This technical showcase from JST Mould features the three primary components of an interior handle module: the decorative bezel (trim), the ergonomic pull lever, and the structural housing (base). Each part requires a distinct engineering approach—balancing Class-A surface aesthetics with high mechanical load-bearing capacity and precision mechanical actuation. We specialize in providing Tier-1 automotive suppliers with fully integrated tooling solutions that ensure a perfect, rattle-free assembly and consistent tactile feedback.
Systematic Breakdown: Technical Mastery in Every Component
Part A: Class-A Aesthetic Bezel (Left):
Designed for maximum visual impact, the bezel features a premium low- gloss matte finish ready for technical graining or decorative plating. JST Mould masters parting line management to ensure the visual "trim ring" is flawless and fits perfectly flush with the door panel.
Part B: Ergonomic Pull Lever (Center):
This high-stress component is engineered for durability and tactile comfort. We utilize high-flow engineering resins (like reinforced PC/ABS or Nylon) to ensure superior impact resistance. Our mold designs optimize the internal ribbing to prevent surface sink marks while maintaining the rigidity required for high-frequency operation.
Part C: Structural Mounting Housing (Right):
The foundation of the handle assembly. It features a sophisticated array of precision-molded screw bosses, snap-fits, and mechanical pivot points. JST Mould ensures micron-level dimensional stability (+/- 0.01mm) to guarantee that the lever mechanism operates smoothly with zero play or unwanted friction (NVH management).
Strategic Business Advantages: Why Leading OEMs Partner with JST Mould
1. Integrated Modular Engineering:
We don't just mold individual parts; we engineer systems. Our comprehensive DFM (Design for Manufacturing) analysis optimizes the entire assembly's fitment, reducing project risk and ensuring a seamless assembly line integration for our partners.
2. Fast-Track Prototyping & T1 Delivery:
We understand the pressure of global vehicle program timelines. JST Mould offers a streamlined manufacturing workflow that delivers high-precision T1 samples and functional prototypes with industry-leading speed, keeping your launch schedule on track.
Scalable Global Reliability:
Operating under strict IATF 16949 quality protocols, our facility is optimized for 24/7 high-volume manufacturing. We deliver consistent, zero-defect modules that empower our global partners to scale their automotive programs with absolute confidence in their high-tech supply chain.
Quick Technical Performance Specs
-
Component Category: Precision Automotive Door Handle Assembly / Multi-Part Module
-
Primary Application: Passenger Vehicle Doors, Commercial Truck Interiors, Cockpit Modules
-
Manufacturing Process: Technical Multi-Cavity Injection Molding & Sub-Assembly Engineering
-
Material Compatibility: High-Impact PC/ABS, Reinforced PA66, or ASA (Customizable per OEM)
-
Precision Tolerance: Micron-level mechanical registration within +/- 0.01mm
-
Surface Finish: Professional Technical Matte / Class-A Aesthetic / Chrome-Ready
-
Service Model: Full Turnkey OEM/ODM Design, Technical Tooling, and Mass Production
-
Quality Certification: Fully compliant with IATF 16949 and ISO 9001 Standards
