High-Performance 2-Cavity Symmetrical Injection Mold for Automotive Interior Substrates | JST Mould Precision Tooling
Operational Strategy Briefing: Engineering Synchronous LH/RH Production

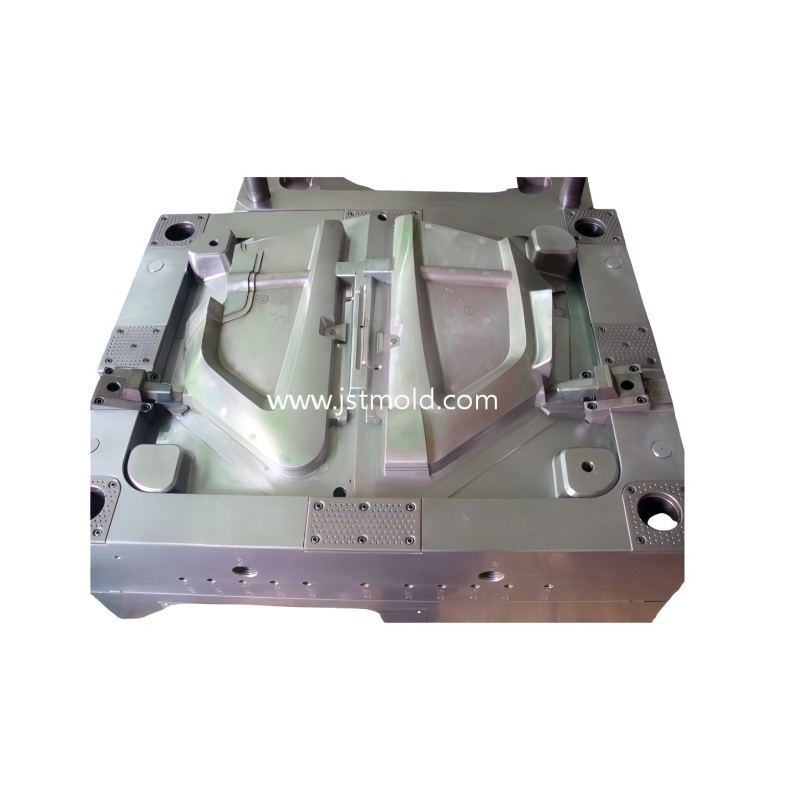

In the sophisticated world of Tier-1 automotive manufacturing, efficiency is driven by the ability to produce matched pairs with absolute geometric consistency. This 2-cavity precision-engineered mold from JST Mold is specifically designed for the simultaneous production of left-hand (LH) and right-hand (RH) interior substrates. Whether for door panel reinforcements, pillar substrates, or complex dashboard sub-assemblies, our tooling ensures that mirrored components maintain identical structural integrity and dimensional stability, facilitating a seamless assembly process on the final vehicle production line.
Technical Differentiators & Engineering Innovation
-
Precision Mirrored Cavity Engineering: Utilizing high-speed 5-axis CNC machining, we achieve micron-level mirrored symmetry between cavities. This eliminates dimensional drift between matched pairs, a critical requirement for automated interior assembly modules.
-
Integrated Wear-Resistant Interfaces: The mold base is equipped with high-durability wear plates and precision-ground interlocking blocks. These features manage high-pressure mechanical kinetics during the injection cycle, preventing flash and maintaining sharp parting lines over a production life of 1,000,000+ shots.
-
Advanced Precision Alignment Kinetics: Featuring oversized hardened leader pillars and bushings, the tool ensures perfect registration between the core and cavity halves. This robust alignment architecture prevents core-shift and ensures uniform wall thickness in deep-draw technical components.
-
Optimized Thermal Path Management: Our engineering team designs intricate cooling circuits that follow the specific 3D contour of the part. This strategic thermal management facilitates rapid heat dissipation, significantly reducing cooling times and preventing part warpage for maximum operational throughput.
Strategic Commercial Value: Fast-Track Delivery & ROI Optimization
-
Accelerated Program Cycles: JST Mold specializes in "Fast-Track" tooling. Leveraging our integrated in-house manufacturing flow, we offer industry-leading lead times for T1 samples, helping our partners meet aggressive vehicle launch milestones without technical compromise.
-
Bespoke Technical Customization: Every project is a unique engineering asset. We provide personalized DFM (Design for Manufacturing) analysis and specialized steel selection (H13, S136, or 1.2738H) to ensure your tool is optimized for your specific resin and factory environment.
-
Tier-1 Quality & Global Reliability: Every tool undergoes a rigorous validation protocol, including 3D CMM inspection and full production trials. We strictly adhere to IATF 16949 and ISO 9001 standards, ensuring our molds are global-ready for immediate, reliable operation in any international facility.
Technical Specifications Overview
-
Tooling Category: Precision 2-Cavity Symmetrical (LH/RH) Injection Mold
-
Primary Application: Automotive Interior Substrates, Pillar Trims, Structural Modules
-
Manufacturing Process: High-Precision CNC Milling, Mirror EDM, and Grinding
-
Steel Material Grade: Premium Hardened Tool Steel (HRC 48-52)
-
Precision Tolerance: Micron-level registration within +/- 0.01mm
-
Surface Finish: Fine Technical Machining / Technical Texture Ready
-
Mold Life Rating: Designed for High-Volume Production (1M+ Shots)
-
Service Model: Full Turnkey OEM/ODM Design, Tooling, and Mass Production Support
