Achieving a 1,000,000-Shot Stable Production: A Technical Report from the Field

Case study: How JST Mould used 1.2344 ESR steel and precision inserts to solve a cycle-time bottleneck for a German Tier-1 technical project.

Precision is a Language, Not a Translation.

Last Friday, my phone buzzed in the middle of the night. It was a message from a long-term partner—a technical lead for a specialized industrial firm in Southern Germany. He sent just seven words: "The parts are here and they look great."

In our 13 years of serving the DACH region (Germany, Austria, Switzerland), those seven words are the highest reward we can get. But as any experienced engineer knows, a "great" T1 isn't luck. It's the result of an obsession with the "Silent Standards" that often get overlooked in a rush to save costs.

3:15 AM in Shenzhen: When the validation hits, the (DE) label is the final seal of trust.

Why We Never Negotiate on Steel Grade

When this project kicked off, we faced a typical choice. We could have used standard H13 to lower the initial quote. But the client’s requirement was non-negotiable: a stable 1,000,000-shot lifespan for a complex interchangeable insert system.

Our Project Manager, Thomas, and I made a firm engineering decision: 1.2344 ESR (Electroslag Remelted) only.

Why ESR? Because when you are running high-temperature materials on advanced European machinery (Arburg/Engel class), the microstructure of the steel is your only defense against thermal fatigue and cracking. We didn't just order the steel; we verified the NADCA-standard vacuum heat treatment to ensure a uniform HRC 52-54. Some call this "over-engineering." We call it "engineering integrity."

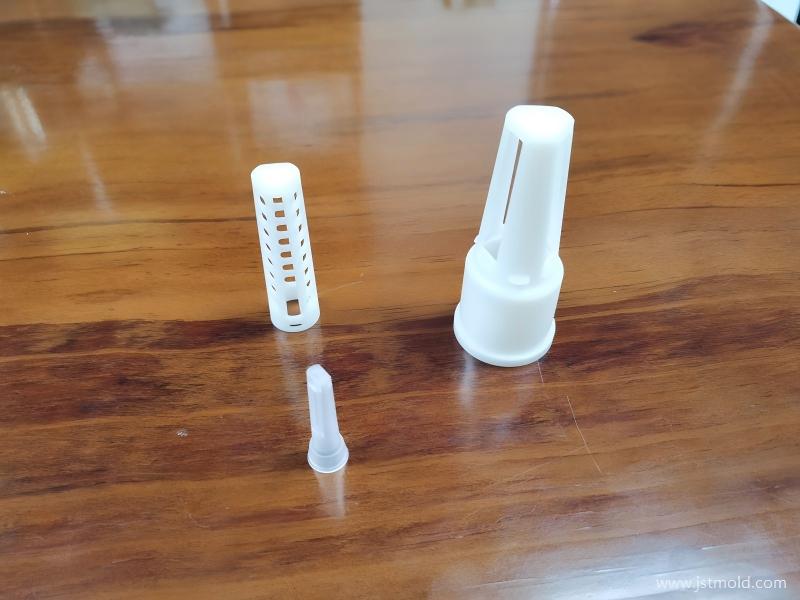

It’s not just a part; it’s a 15-second cycle time reality. Precision alignment within 0.01mm is our minimum bar.

The 15-Second Challenge: Thermal Management in the Real World

The target was aggressive—a 15-18 second cycle time for these technical components. This wasn't just about machine speed; it was a test of our thermal management logic.

We went through three iterations of the internal cooling circuits before we were satisfied. By integrating premium insulation plates and optimizing the gate balance, the T1 samples came out perfectly—no shrinkage, no deformation. It proved once again that being a "Technical Boutique" beats being a "Tooling Giant."

What it Means to be a Technical Boutique

In a world of massive factories, JST Mould stays lean. We are the ones who actually touch the steel and join the design meetings. Whether we are discussing tight-tolerance stamping parts for automotive giants or the intricate venting needed for technical housings, the conversation at JST is always engineering-to-engineering.

We speak the language of data. Every critical insert is verified through a full CMM report before leaving the shop.

Final Thoughts: Exporting Reliability

When you see that FedEx box with the (DE) mark on our conveyor, know that it contains more than just tools. It contains reliability and the sweat of a team that works while the world sleeps to ensure your production line never stops.

Let’s Bridge the Technical Gap Together.

Are your current high-volume projects suffering from inconsistent quality or long cycle times? Let’s talk about a more reliable approach.

Request a Technical "Reality Check": Send us your most challenging design. Thomas and our engineering team will provide a DFM audit focused on long-term stability.

Benchmark Your Standards: If you require DIN/ISO/VDI compliance but struggle with communication, we speak your technical language.

Stay Informed: Follow our Newsletter for monthly technical field reports directly from the heart of Shenzhen’s precision manufacturing sector.

[Button: Contact JST Mould]

Secure Your Design: Request a professional DFM audit for your 1,000,000-Shot Stable Production: project.

Technical Reference Index:

Steel Standards: DIN 1.2344 ESR, 1.2343 ESR, X37CrMoV5-1.

Tolerance Standards: DIN 16742 (Group TG6), ISO 20457.

Surface Finish: VDI 3400 (Technical Texture), SPI-A1 Mirror Polishing.

Machinery Compatibility: Arburg 320S, Engel e-mac, Fanuc Roboshot.

Strategic Hubs: DACH Region (Bavaria, Baden-Württemberg), China (Shenzhen, Bao'an).

Key Performance: 1,000,000 shots stability, 15s-18s high-cycle optimization.
